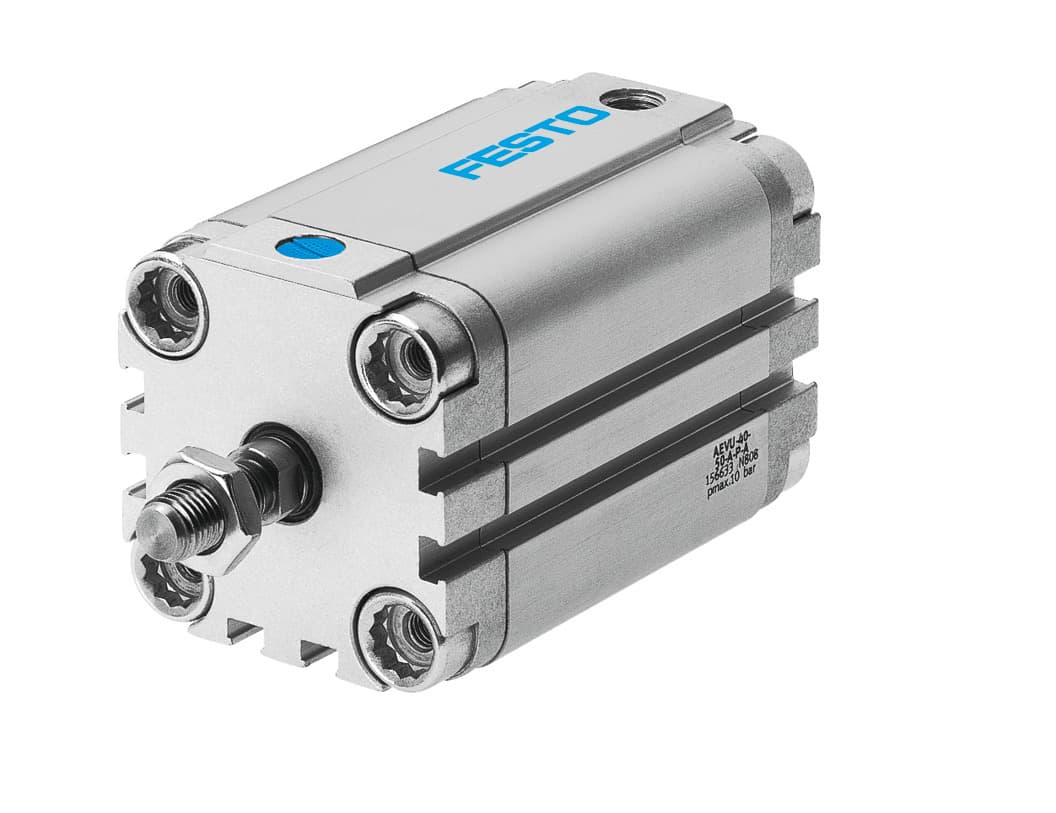

aevu-32- -a-p-a-s6
Product ID:3088
Updated: 2026/7/6
Key Features
- 1Minimize installation space with a compact single-acting pushing design.
- 2Enable precise position sensing via a built-in magnetic piston.
- 3Ensure smooth operation and reduce wear with elastic cushioning.
- 4Operate in diverse environments from -20°C to +80°C.
- 5Configure the piston rod with internal or external threads.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
| Impact energy in the end positions | 0.4J | Theoretical force at 6 bar, advancing | 450N |
| Moving mass at 0?mm stroke | 49g | Additional moving mass per 10?mm stroke | 9g |
| Basic weight with 0?mm stroke | 300g | Additional weight per 10?mm stroke | 40g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/8 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | FPM | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156314 |
Specifications may be subject to change without notice
