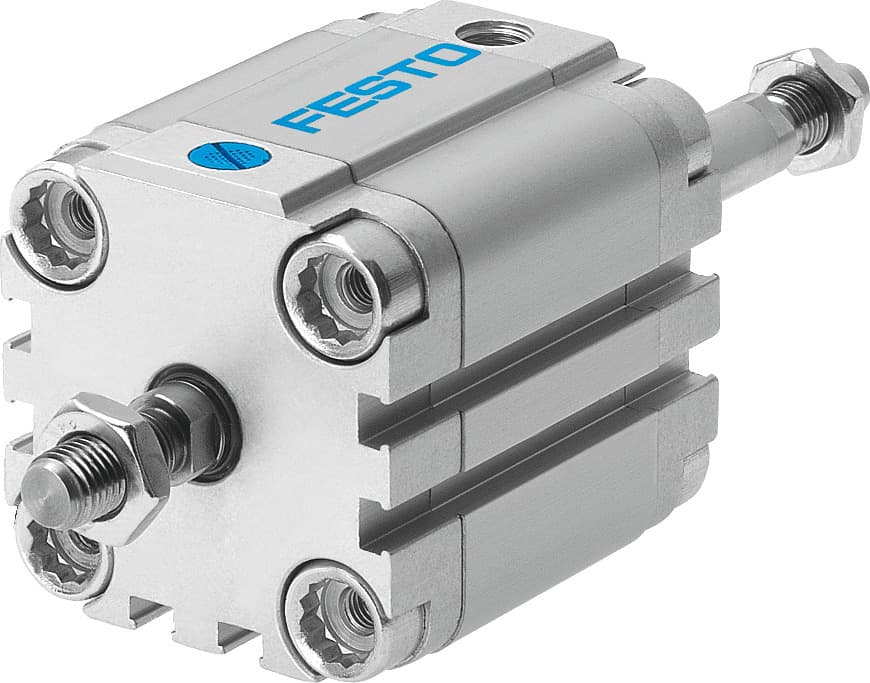

aevu-63- -a-p-a-s2
Product ID:3071
Updated: 2026/4/3
Key Features
- 1Achieve precise control and positioning for demanding automation tasks. 2、Customize from a wide range of variants to meet specific application requirements. 3、Enable accurate position sensing with its integrated magnetic piston design. 4、Minimize installation space by 50% compared to standard ISO cylinders. 5、Ensure durability with corrosion-resistant materials like aluminum alloy and steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 63 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991202 | Variants | Through piston rod |
| Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, advancing | 1679N |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/8 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156277 |
Specifications may be subject to change without notice
