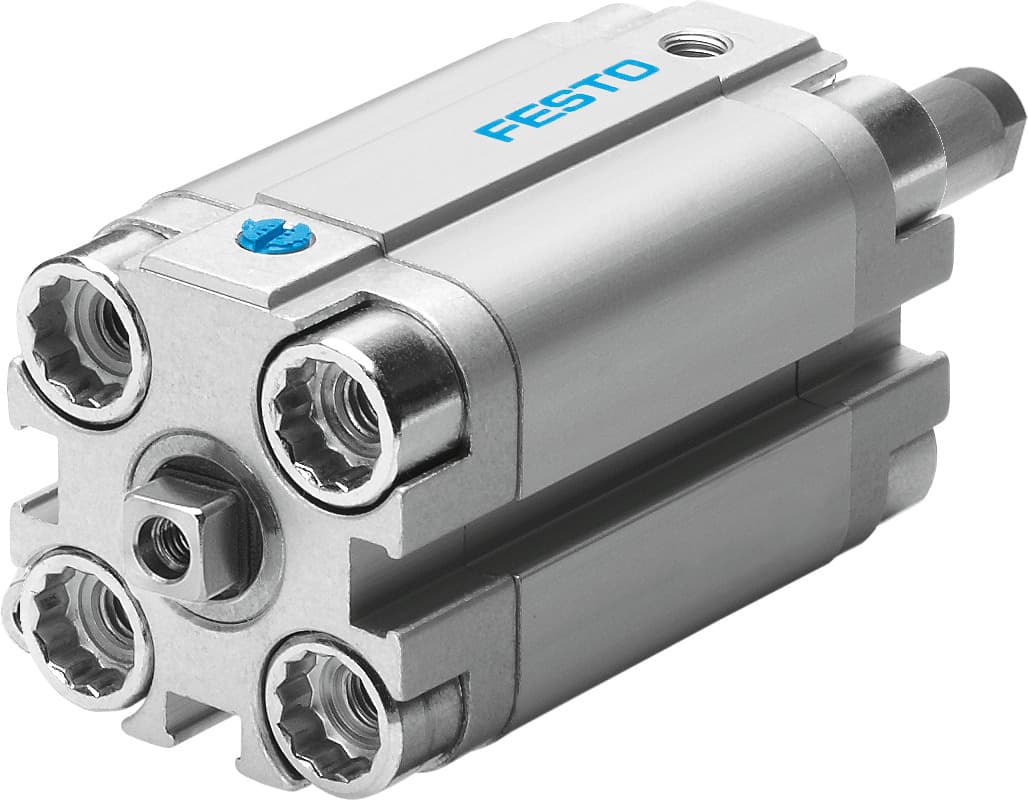

aevulq-20- -p-a-s2
Product ID:3104
Updated: 2026/7/6
Key Features
- 1Maximize space efficiency with a compact design and 1-200 mm stroke range.
- 2Reduce wear using elastic cushioning rings at both ends for smooth operation.
- 3Enable flexible bidirectional movement with double-acting operation.
- 4Withstand moderate corrosion stress with a CRC 2 resistance class.
- 5Achieve precise control via position detection with a proximity switch.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991202 | Variants | Through piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.14J |
| Theoretical force at 6 bar, advancing | 123N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | M5 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156332 |
Specifications may be subject to change without notice
