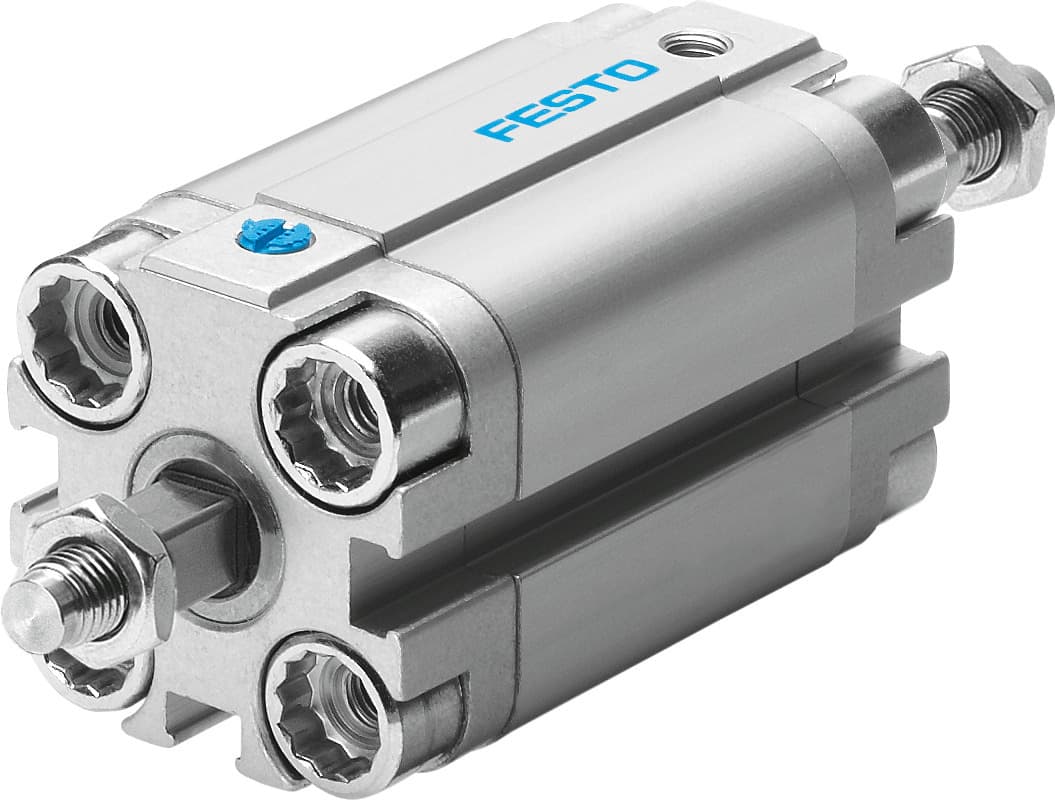

aevulq-25- -a-p-a-s2
Product ID:3124
Updated: 2026/4/3
Key Features
- 1Optimize space with a compact cylinder design. 2、Achieve high precision and reliable operation consistently. 3、Select from optional mounting positions for flexibility. 4、Reduce wear using elastic cushioning rings at both ends. 5、Integrate easily with standardized Festo component dimensions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991202 | Variants | Through piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1J |
| Theoretical force at 6 bar, advancing | 221N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | M5 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156373 |
Specifications may be subject to change without notice
