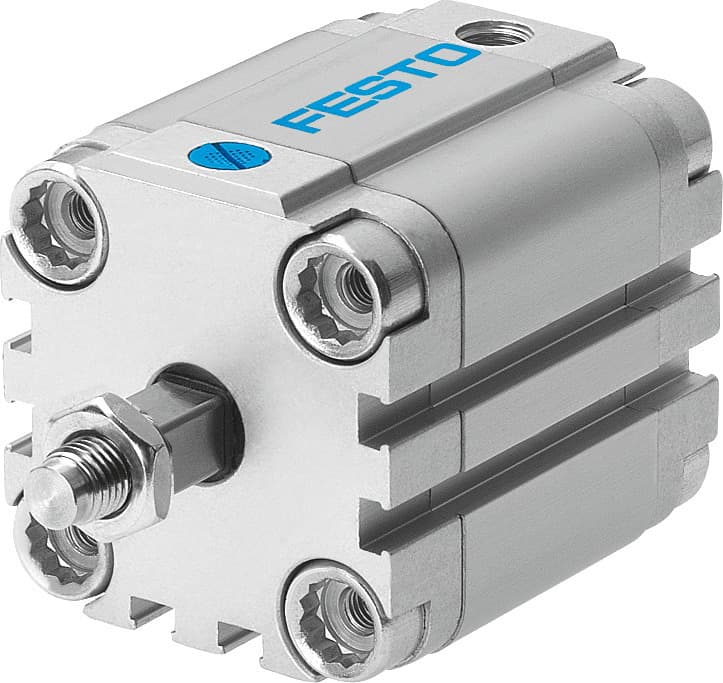

aevulq-50- -a-p-a
Product ID:3118
Updated: 2026/4/3
Key Features
- 1Achieve precise control and reliable operation for diverse industrial tasks. 2、Utilize flexible cushioning rings at both ends to ensure smooth motion. 3、Assemble the cylinder in any position for maximum design flexibility. 4、Employ single-acting pushing action for efficient, straightforward motion. 5、Deploy in environments with moderate corrosion stress (CRC 2).
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 50 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.64J |
| Theoretical force at 6 bar, advancing | 1121N | Moving mass at 0?mm stroke | 112g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 560g |
| Additional weight per 10?mm stroke | 72g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156366 |
Specifications may be subject to change without notice
