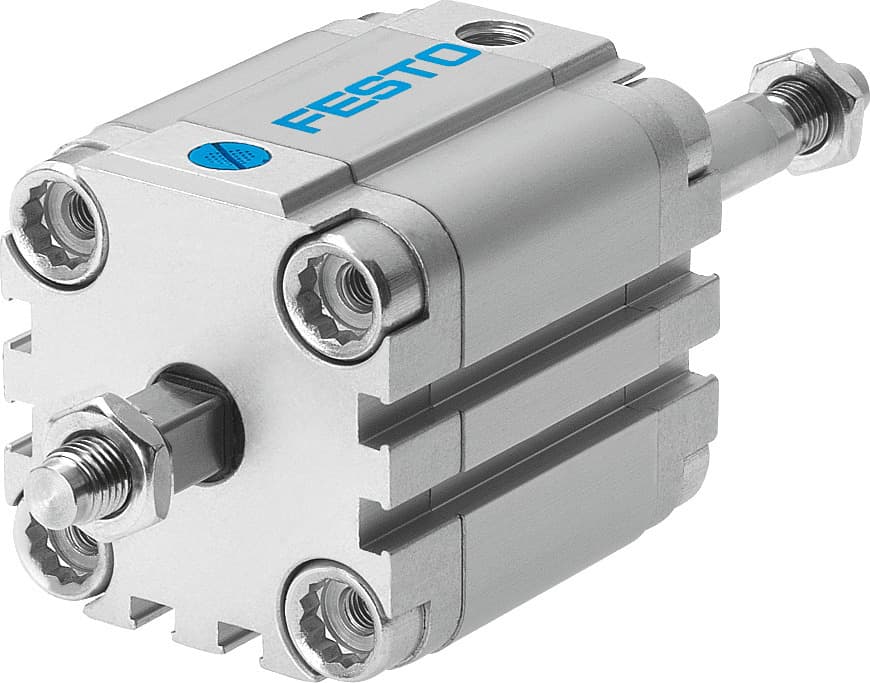

aevulq-63- -a-p-a-s2
Product ID:3128
Updated: 2026/4/3
Key Features
- 1Deliver reliable performance for efficient industrial operation. 2、Provide precise motion with a 63 mm piston and 15 mm stroke. 3、Ensure smooth operation using elastic cushioning rings at both ends. 4、Enable easy connection via the piston rod's external thread. 5、Guarantee durability with high-alloy and galvanized steel construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 63 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991202 | Variants | Through piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
| Theoretical force at 6 bar, advancing | 1679N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156377 |
Specifications may be subject to change without notice
