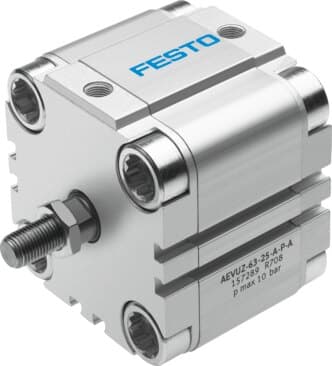

AEVUZ-100- -A-P-A
Product ID:510715
Updated: 2026/6/1
Key Features
- 1Operating mode: Single-acting / Pulling
- 2Piston diameter: 100 mm
- 3Theoretical force at 6 bar, advancing stroke: 4222 N
- 4Stroke: 1 / 25 mm
- 5Cushioning: Elastic cushioning rings/pads at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Material of cylinder barrel | Wrought aluminium alloy | Material of piston rod | High-alloy steel |
| Material of dynamic seals | NBR / TPE-U(PU) | Material of cover | Wrought aluminium alloy |
| Material of eye screw | Galvanized steel | Pneumatic connection | G1/4 |
| Mounting type | With through-holes / With accessories | Additional weight per 10 m stroke | 177 g |
| Basic weight at 0 mm stroke | 2797 g | Additional moving mass per 10 mm stroke | 38 g |
| Moving mass at 0 mm stroke | 614 g | Theoretical force at 6 bar, advancing stroke | 4222 N |
| Impact energy at end positions | 1 J | Ambient temperature | -20 / 80 °C |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 2 - Moderate corrosion resistance |
| Note on operating and pilot medium | Can be operated with lubricated medium (subsequently must always be operated with lubricated medium) | Operating medium | Compressed air in accordance with ISO 8573-1:2010 [7:4:4] |
| Operating pressure | 11.6 / 145 psi | Variant | Single-ended piston rod |
| Symbol | 00991204 | Position detection | Via proximity switch |
| Design feature | Cylinder bore / Piston rod | Piston rod end | External thread |
| Operating mode | Single-acting / Pulling | Mounting position | Optional |
| Cushioning | Elastic cushioning rings/pads at both ends | Piston rod thread | M20x1.5 |
| Piston diameter | 100 mm | Stroke | 1 / 25 mm |
