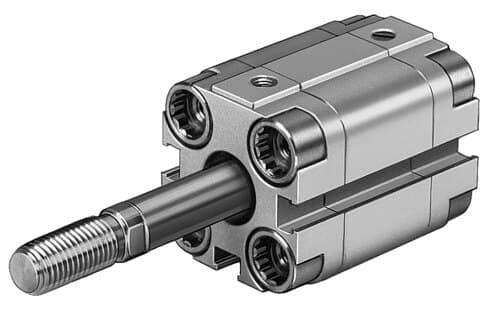

AEVUZ-16-20-A-P-A
Product ID:511173
Updated: 2026/6/1
Key Features
- 1Operating mode: Single-acting / Pulling
- 2Piston diameter: 16 mm
- 3Theoretical force at 6 bar, forward stroke: 81 N
- 4Stroke: 20 mm
- 5Cushioning: Elastic cushioning rings/pads at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Material of cylinder barrel | Wrought aluminum alloy | Material of piston rod | High-alloy stainless steel |
| Material of dynamic seals | NBR / TPE-U(PU) | Material of cover | Wrought aluminum alloy |
| Material of eye-bolt | High-alloy stainless steel | Pneumatic connection | M5 |
| Mounting type | With through-holes / With accessories | Additional weight per 10 mm stroke | 15 g |
| Basic weight at 0 mm stroke | 89 g | Additional moving mass per 10 mm stroke | 4 g |
| Moving mass at 0 mm stroke | 12 g | Theoretical force at 6 bar, forward stroke | 81 N |
| Impact energy at end positions | 0.1 J | Ambient temperature | -20 / 80 °C |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 2 - Moderate corrosion resistance |
| Note on operating and pilot medium | Can be operated with lubricated media (subsequently must always be operated with lubricated media) | Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Operating pressure | 18.85 / 145 psi | Variant | Single-ended piston rod |
| Symbol | 00991204 | Position detection | Via proximity switch |
| Design feature | Cylinder barrel / Piston rod | Piston rod end | External thread |
| Operating mode | Single-acting / Pulling | Mounting position | Any |
| Cushioning | Elastic cushioning rings/pads at both ends | Piston rod thread | M8 |
| Piston diameter | 16 mm | Stroke | 20 mm |
Specifications may be subject to change without notice
