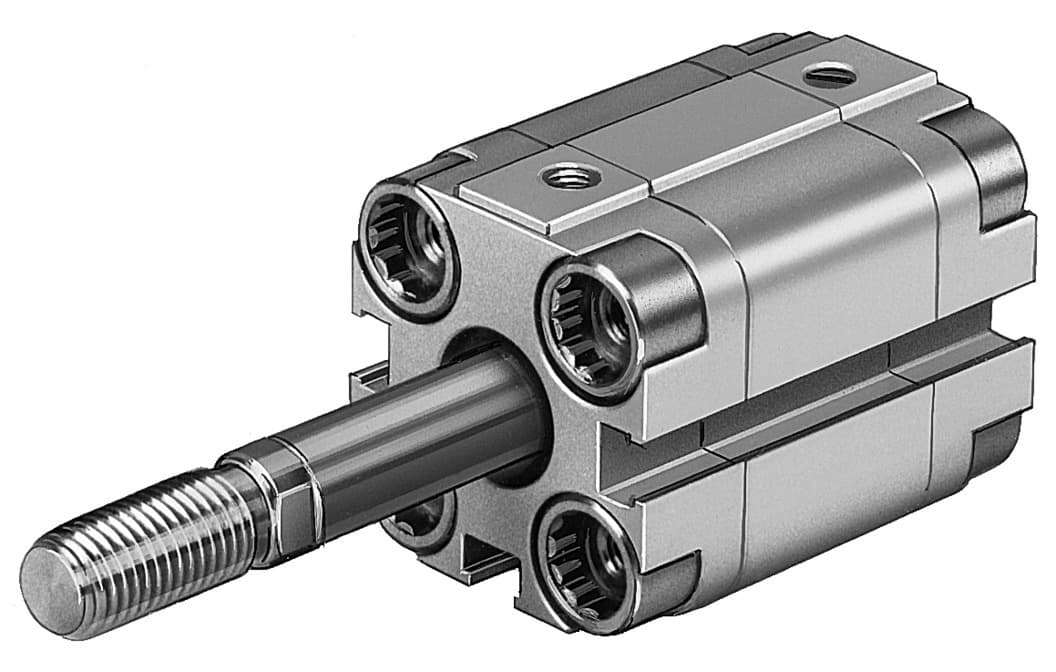

aevuz-16- -a-p-a-s6
Product ID:3166
Updated: 2026/4/3
Key Features
- 1Save 50% installation space versus standard ISO cylinders. 2、Choose from variants with internal or external piston rod threads. 3、Enable precise control with a built-in magnet for sensing. 4、Withstand moderate corrosion with CRC Class 2 resistance. 5、Reduce impact energy using elastic cushioning at both ends.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991204 | Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 18.85psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
| Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, advancing | 81N |
| Moving mass at 0?mm stroke | 12g | Additional moving mass per 10?mm stroke | 4g |
| Basic weight with 0?mm stroke | 89g | Additional weight per 10?mm stroke | 15g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Flange screws material | High-alloy stainless steel | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | FPM | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156491 |
Specifications may be subject to change without notice
