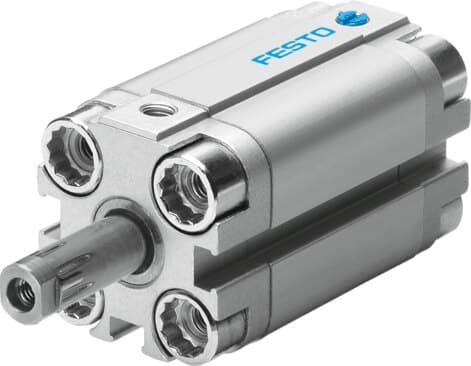

AEVUZ-25-15-P-A
Product ID:511079
Updated: 2026/6/1
Key Features
- 1Operating mode: Single-acting / Pulling
- 2Piston diameter: 25 mm
- 3Theoretical force at 6 bar, forward stroke: 221 N
- 4Stroke: 15 mm
- 5Cushioning: Elastic cushioning rings/pads at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cylinder barrel material | Wrought aluminium alloy | Piston rod material | High-alloy stainless steel |
| Dynamic seal material | NBR / TPE-U(PU) | Cover material | Wrought aluminium alloy |
| Eye screw material | Galvanised steel | Pneumatic connection | M5 |
| Mounting type | Through-holes / With accessories | Additional weight per 10 m stroke | 28 g |
| Basic weight at 0 mm stroke | 180 g | Additional moving mass per 10 mm stroke | 6 g |
| Moving mass at 0 mm stroke | 26 g | Theoretical force at 6 bar, forward stroke | 221 N |
| Impact energy at end positions | 0.1 J | Ambient temperature | -20 / 80 °C |
| Paint-wetting impairment substances (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 2 - Moderate corrosion resistance |
| Operating and pilot medium note | Can be operated with lubricated media (subsequently must always be operated with lubricated media) | Operating medium | Compressed air in accordance with ISO 8573-1:2010 [7:4:4] |
| Operating pressure | 14.5 / 145 psi | Variant | Single-ended piston rod |
| Symbol | 00991204 | Position detection | Via proximity switch |
| Design feature | Cylinder barrel / Piston rod | Piston rod end | Internal thread |
| Operating mode | Single-acting / Pulling | Mounting position | Optional |
| Cushioning | Elastic cushioning rings/pads at both ends | Piston rod thread | M5 |
| Piston diameter | 25 mm | Stroke | 15 mm |
Specifications may be subject to change without notice
