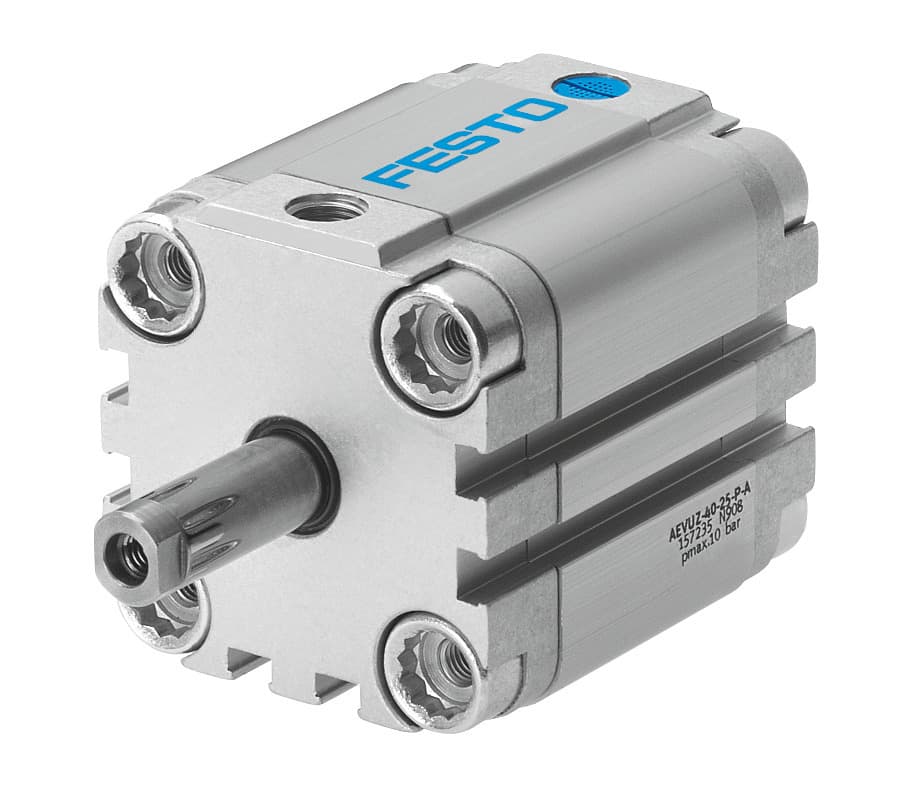

aevuz-80- -p-a-s6
Product ID:3152
Updated: 2026/4/3
Key Features
- 1Ensure excellent running performance with high-alloy steel piston rods. 2、Reduce noise and vibration via adjustable elastic cushioning at both ends. 3、Achieve versatile application fit with compact dimensions and multiple stroke lengths. 4、Enable precise control in single-action retraction applications. 5、Meet ISO 8573-1:2010 standards for reliable compressed air operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 80 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991204 | Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
| Impact energy in the end positions | 0.75J | Theoretical force at 6 bar, advancing | 2733N |
| Moving mass at 0?mm stroke | 307g | Additional moving mass per 10?mm stroke | 25g |
| Basic weight with 0?mm stroke | 1772g | Additional weight per 10?mm stroke | 168g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/8 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | FPM | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156478 |
Specifications may be subject to change without notice
