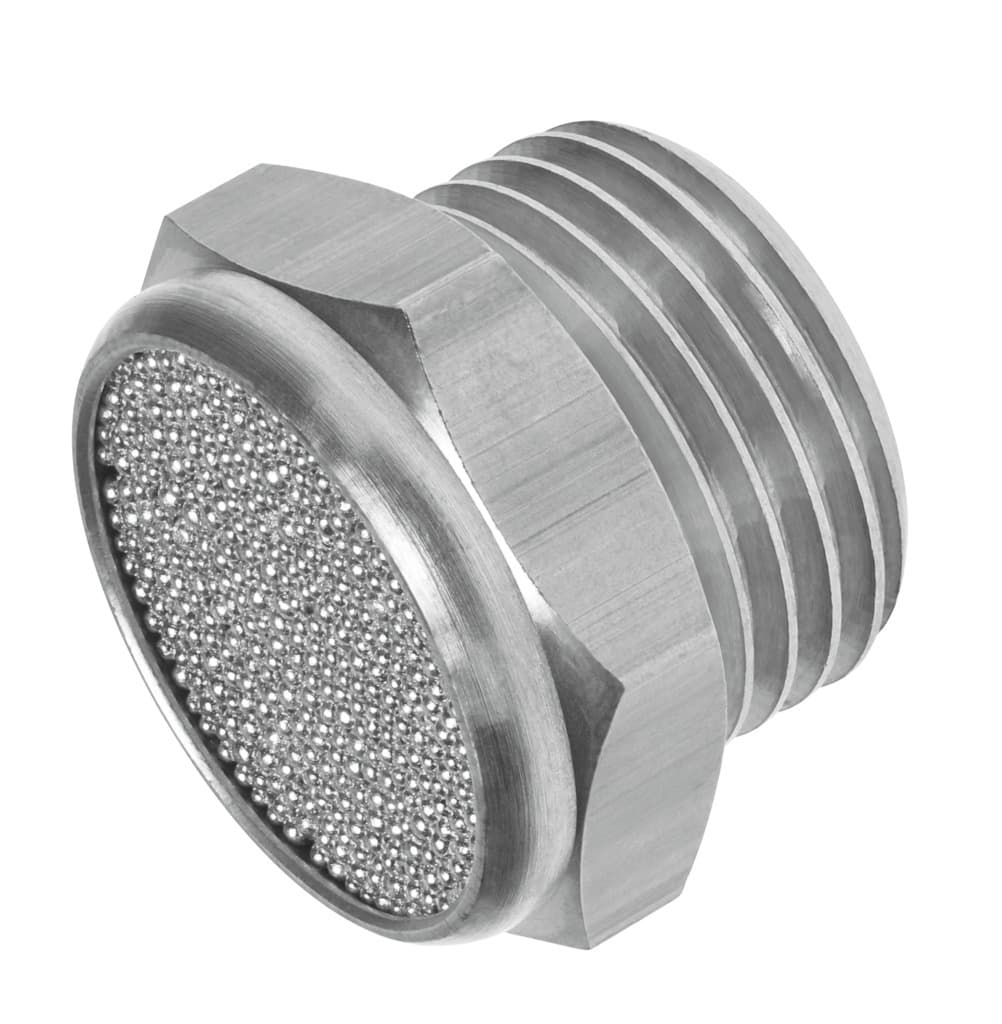

amte-m-h-m5
Product ID:841
Updated: 2026/7/4
Key Features
- 1Reduce exhaust port noise effectively for a quieter workspace.
- 2Mount in any position for flexible system design and easy installation.
- 3Handle a flow rate of 91 l/min for high-demand pneumatic applications.
- 4Construct from bronze and brass for low corrosion stress (CRC 1) and durability.
- 5Operate from 0-10 bar and -40°C to 80°C for versatile use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pack size | 20 |
| Symbol | 00991473 | Operating pressure | 0bar 10bar |
| Flow rate with respect to atmosphere | 91l/min | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Noise level | 71dB(A) | Ambient temperature | -40°C 80°C |
| Product weight | 1.1g | Pneumatic connection | M5 |
| Cushioning insert material | Bronze | Material of screwed plug | Brass |
| Note on materials | RoHS-compliant | Manufacturer ID | 1206621 |
Specifications may be subject to change without notice
