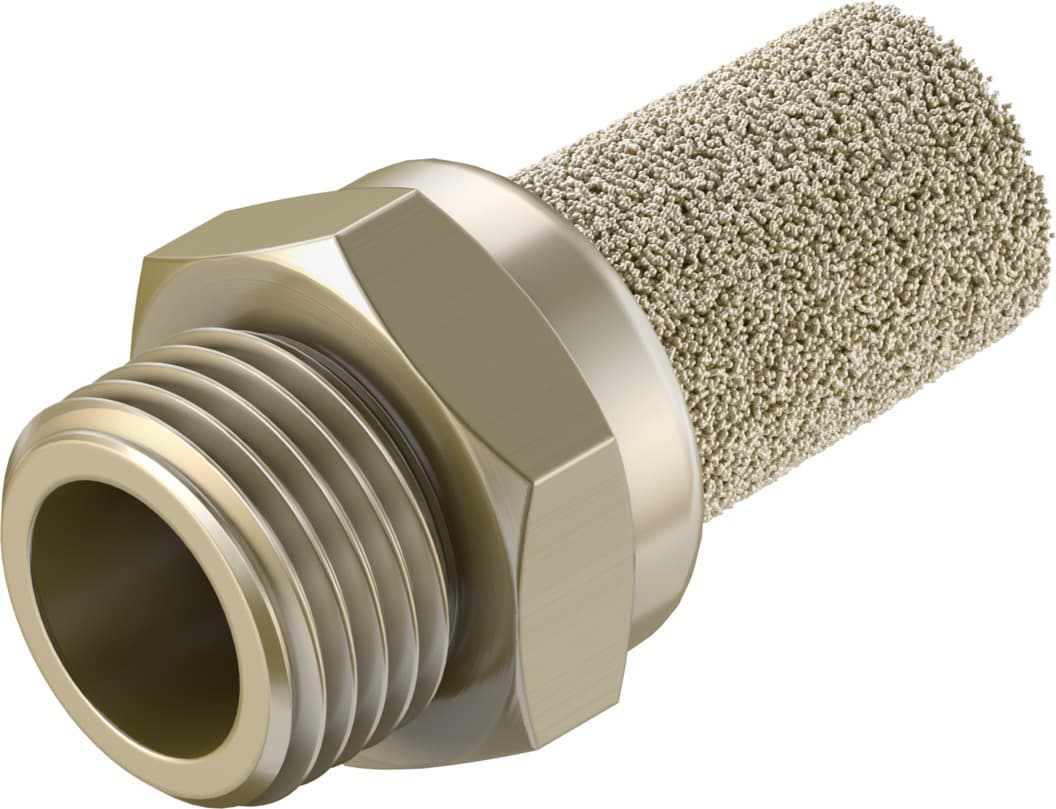

amte-m-lh-g18
Product ID:835
Updated: 2026/7/4
Key Features
- 1Reduce noise levels effectively to 76 dB(A) for a quieter workspace.
- 2Operate reliably across a broad 0 to 10 bar pressure range.
- 3Handle high airflow efficiently with a 1735 l/min flow rate.
- 4Resist corrosion with a low CRC 1 classification for durability.
- 5Meet ATEX Zone 1, 2, 21, and 22 safety standards for hazardous areas.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pack size | 20 |
| Symbol | 00991473 | Operating pressure | 0bar 10bar |
| Flow rate with respect to atmosphere | 1735l/min | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Noise level | 76dB(A) | Ambient temperature | -40°C 80°C |
| Product weight | 7.5g | Pneumatic connection | G1/8 |
| Cushioning insert material | Bronze | Material of screwed plug | Brass |
| Note on materials | RoHS-compliant | Manufacturer ID | 1205860 |
Specifications may be subject to change without notice
