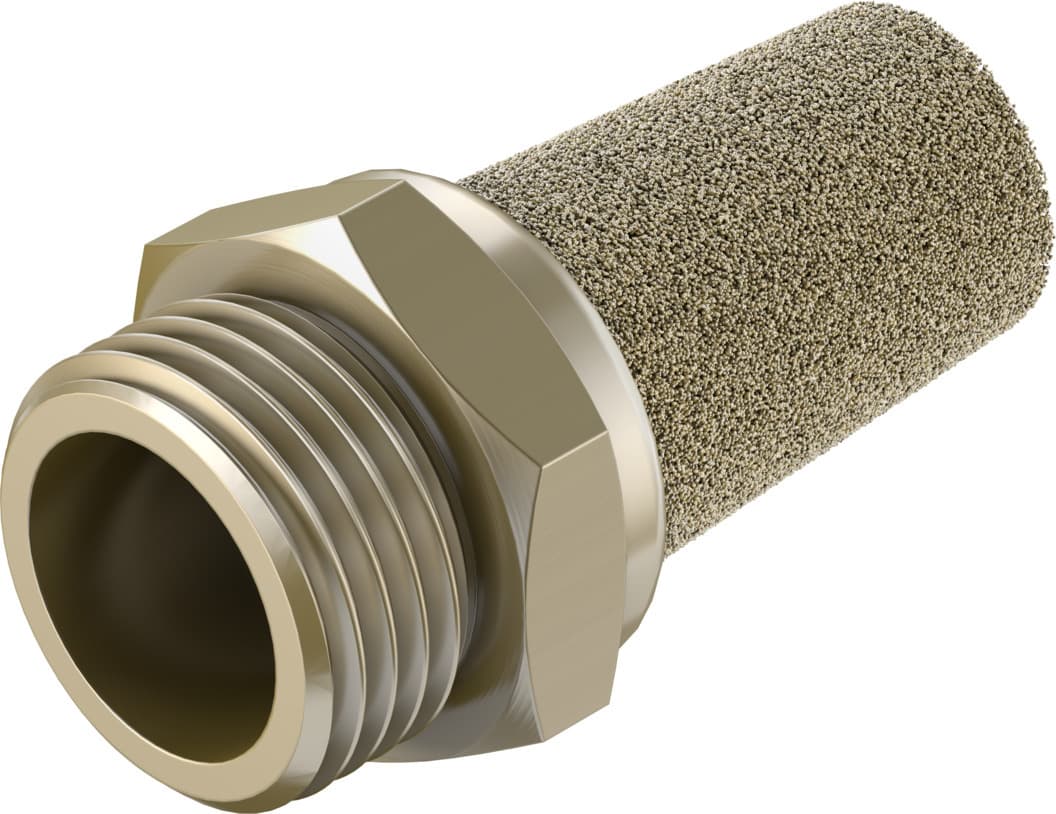

amte-m-lh-n12
Product ID:849
Updated: 2026/4/3
Key Features
- 1Reduce pneumatic system noise effectively with a long-design bronze silencer insert. 2、Connect seamlessly using the standard 1/2 NPT male thread. 3、Operate reliably across a 0 to 10 bar pressure range. 4、Achieve a quieter 85 dB(A) noise level for improved safety. 5、Simplify procurement with efficient packaging available in increments of 10.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pack size | 10 |
| Symbol | 00991473 | Operating pressure | 0bar 10bar |
| Flow rate with respect to atmosphere | 9240l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Noise level | 85dB(A) |
| Ambient temperature | -40°C 80°C | Product weight | 46g |
| Pneumatic connection | 1/2 NPT | Cushioning insert material | Bronze |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Manufacturer ID | 1206992 |
Specifications may be subject to change without notice
