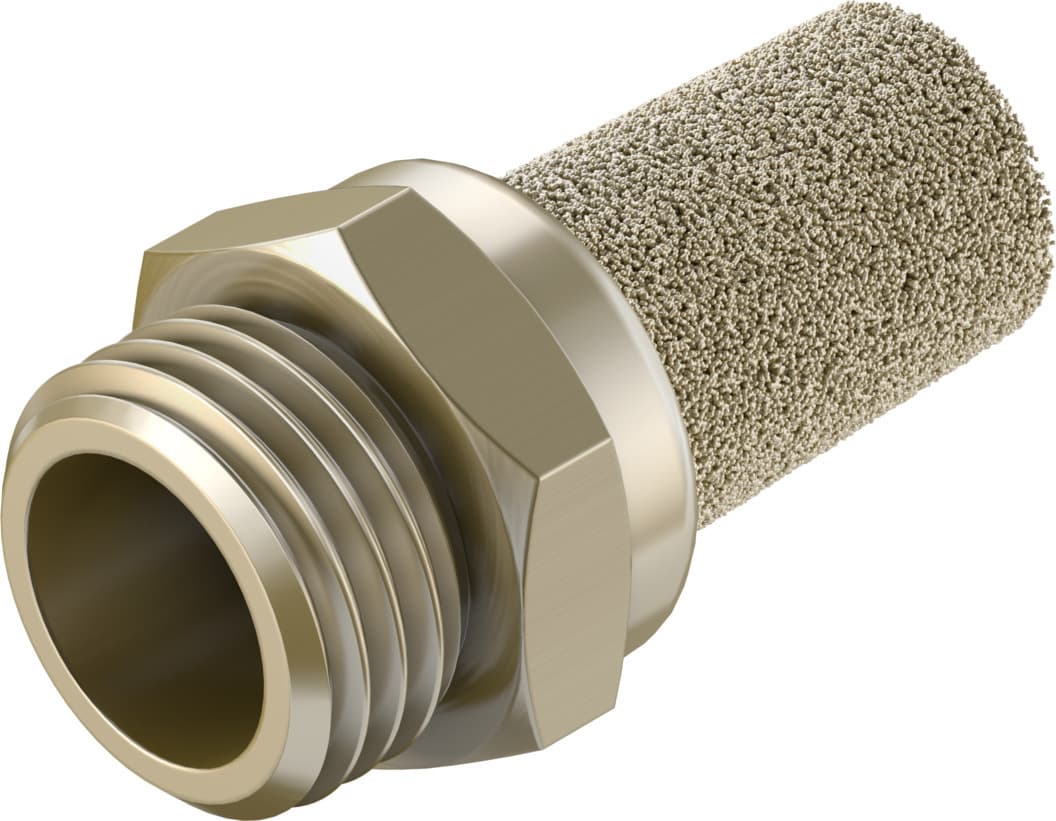

amte-m-lh-n14
Product ID:847
Updated: 2026/4/3
Key Features
- 1Reduce noise levels effectively to 82 dB(A) for a quieter workspace. 2、Handle high flow rates up to 3080 l/min for demanding pneumatic systems. 3、Construct from durable brass and bronze for low corrosion and long life. 4、Integrate easily with standard 1/4 NPT threaded port connections. 5、Operate with compressed air compliant to ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pack size | 20 |
| Symbol | 00991473 | Operating pressure | 0bar 10bar |
| Flow rate with respect to atmosphere | 3080l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Noise level | 82dB(A) |
| Ambient temperature | -40°C 80°C | Product weight | 17g |
| Pneumatic connection | 1/4 NPT | Cushioning insert material | Bronze |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Manufacturer ID | 1206990 |
Specifications may be subject to change without notice
