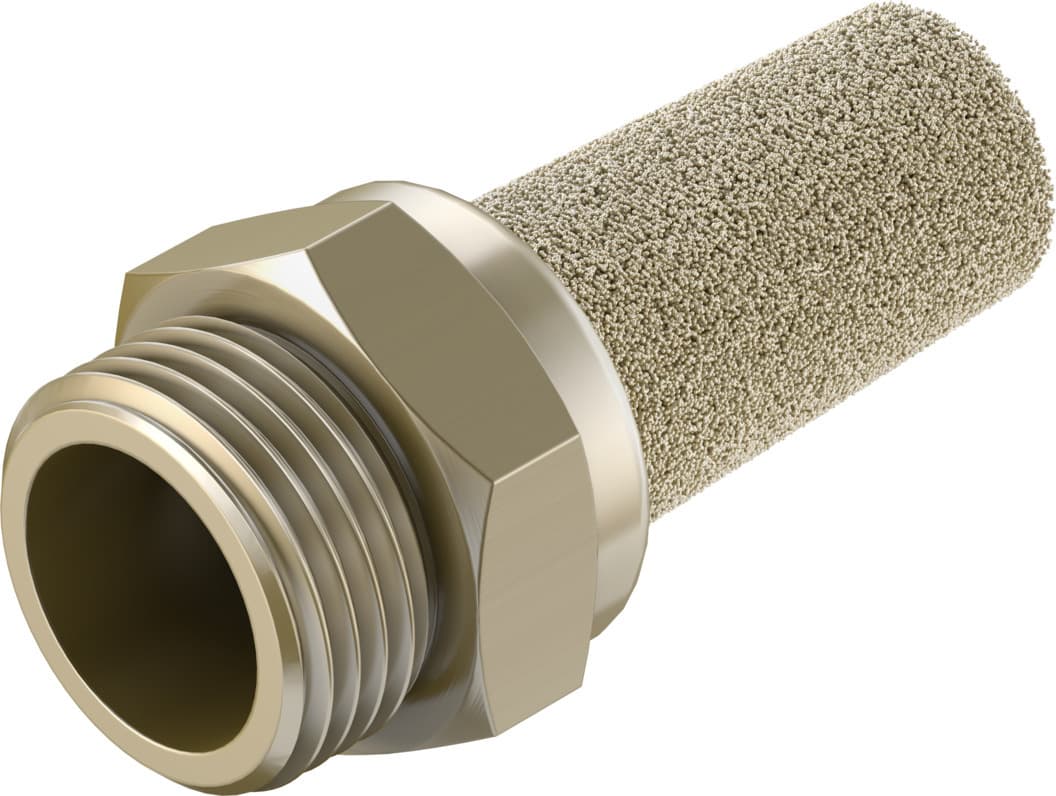

amte-m-lh-n38
Product ID:848
Updated: 2026/4/3
Key Features
- 1Reduce exhaust port noise effectively for a quieter workplace. 2、Mount in any position to adapt to various system layouts. 3、Handle high-volume flows up to 5365 l/min for efficient operation. 4、Resist corrosion with durable bronze and brass materials. 5、Operate reliably in extreme temperatures from -40°C to 80°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pack size | 10 |
| Symbol | 00991473 | Operating pressure | 0bar 10bar |
| Flow rate with respect to atmosphere | 5365l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Noise level | 83dB(A) |
| Ambient temperature | -40°C 80°C | Product weight | 29g |
| Pneumatic connection | 3/8 NPT | Cushioning insert material | Bronze |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Manufacturer ID | 1206991 |
Specifications may be subject to change without notice
