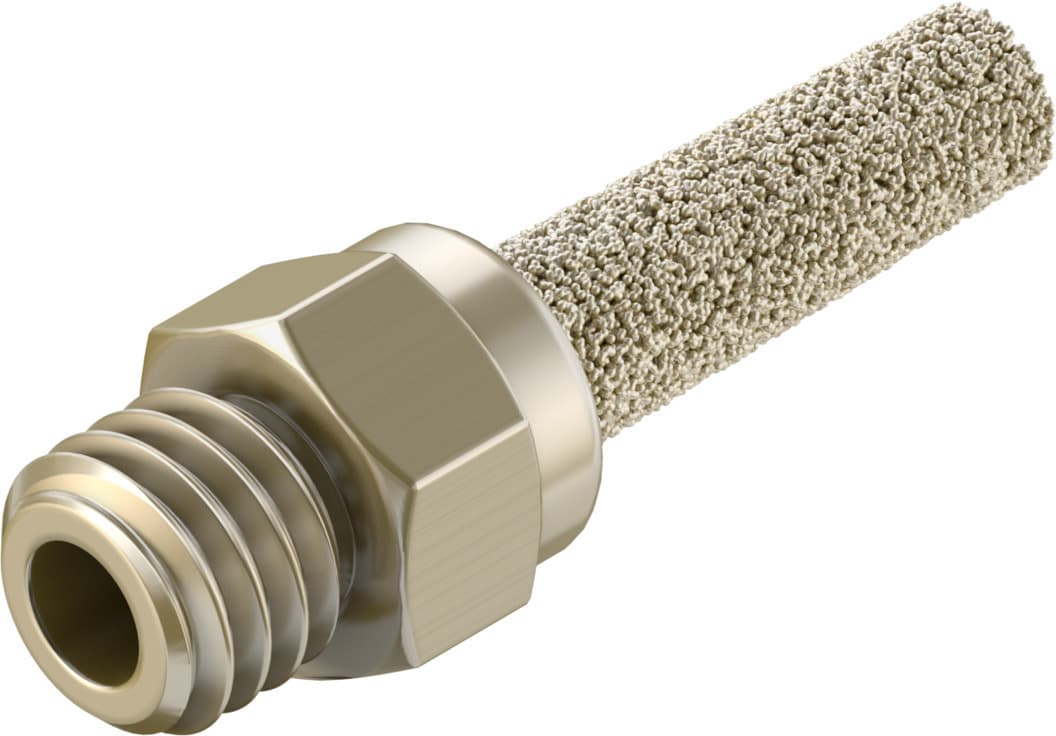

amte-m-lh-u10
Product ID:850
Updated: 2026/4/3
Key Features
- 1Reduce pneumatic exhaust noise effectively for a quieter work environment. 2、Mount in any position to provide flexible system design and installation. 3、Handle airflow efficiently with a 260 liters per minute flow rate. 4、Withstand various conditions thanks to its low corrosion stress classification. 5、Ensure environmental compliance with RoHS-approved bronze and brass construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pack size | 20 |
| Symbol | 00991473 | Operating pressure | 0bar 10bar |
| Flow rate with respect to atmosphere | 260l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Noise level | 71dB(A) |
| Ambient temperature | -40°C 80°C | Product weight | 1.7g |
| Pneumatic connection | 10-32 UNF-2A | Cushioning insert material | Bronze |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Manufacturer ID | 1206994 |
Specifications may be subject to change without notice
