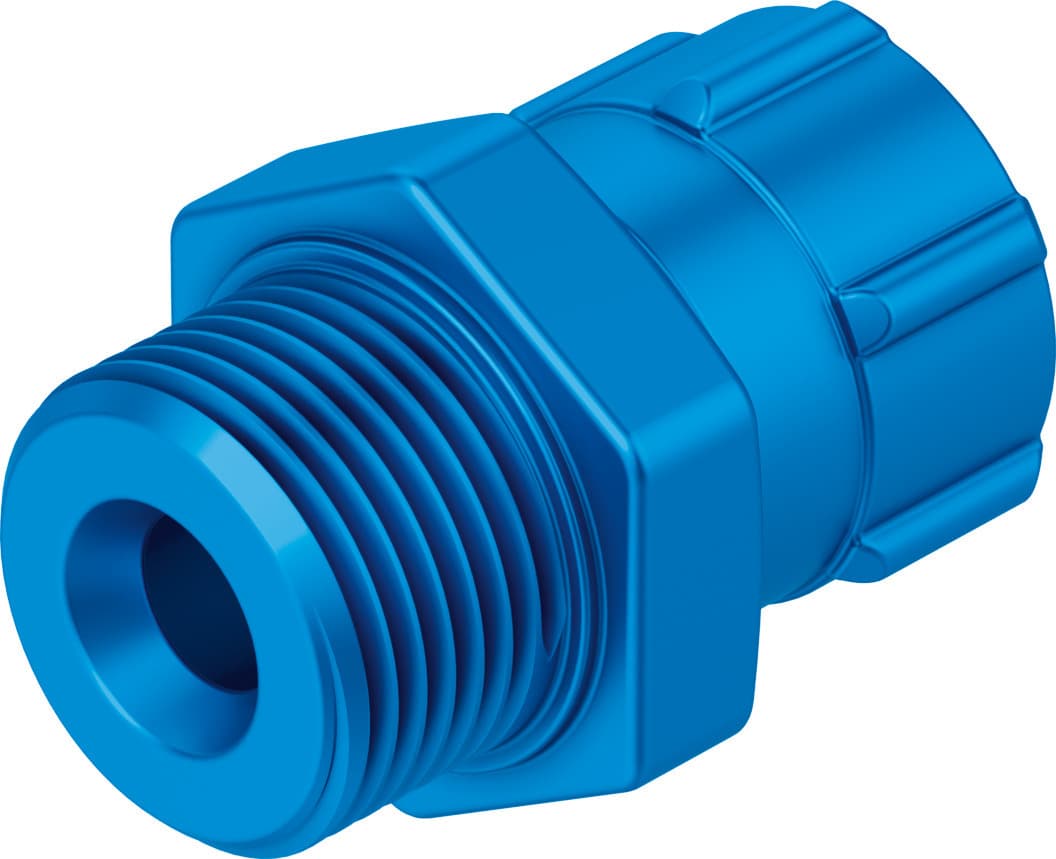

ck-1/2-pk-13
Product ID:8492
Updated: 2026/4/4
Key Features
- 1Ensure reliable pneumatic connections in demanding industrial applications. 2、Feature an external G1/2 thread compatible with 13 mm tubing. 3、Construct with durable aluminum housing for corrosion resistance. 4、Enable quick installation to significantly reduce production downtime. 5、Offer compact design with 11.7 mm nominal width for space efficiency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 11.7mm | Type of seal on screwed plug | Sealing ring |
| Mounting position | Any | Design | Straight design |
| Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Nominal tightening torque | 14Nm |
| Tolerance for nominal tightening torque | ± 20% | Pneumatic connection 1 | External thread G1/2 |
| Pneumatic connection 2 | for barbed fitting, inside diameter 13 mm, with nut | Material of union nut | Wrought aluminum alloy, anodized |
| Material of screwed plug | Anodized wrought aluminum alloy | Note on materials | RoHS-compliant |
| Sealing ring material | Reinforced PA TPE-U(PU) | Manufacturer ID | 4098 |
Specifications may be subject to change without notice
