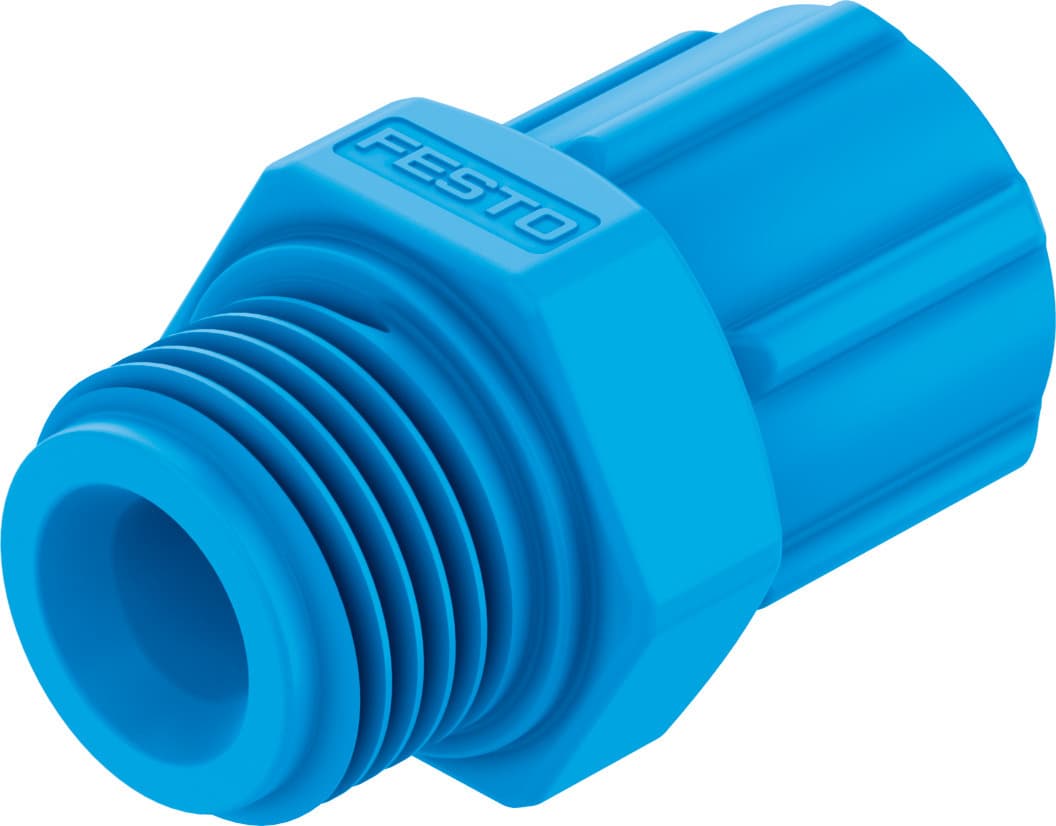

ck-3/8-pk-6-ku
Product ID:14795
Updated: 2026/7/4
Key Features
- 1Ensure leak-free connections with a robust sealing edge design.
- 2Handle wide operating pressures from -0.095 to 10 MPa.
- 3Simplify installation with flexible optional mounting positions.
- 4Achieve precise fits using the compact 5.3mm nominal size.
- 5Connect reliably for compressed air and water applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 5.3mm | Type of seal on screwed plug | Sealing edge |
| Mounting position | Any | Design | Straight design |
| Pack size | 10 | Operating pressure for entire temperature range | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Nominal tightening torque | 7.5Nm |
| Tolerance for nominal tightening torque | ± 20% | Pneumatic connection 1 | External thread G3/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm for barbed fitting, inside diameter 6 mm, with nut | Material of union nut | POM |
| Material of screwed plug | POM | Note on materials | RoHS-compliant |
| Manufacturer ID | 6460 |
Specifications may be subject to change without notice
