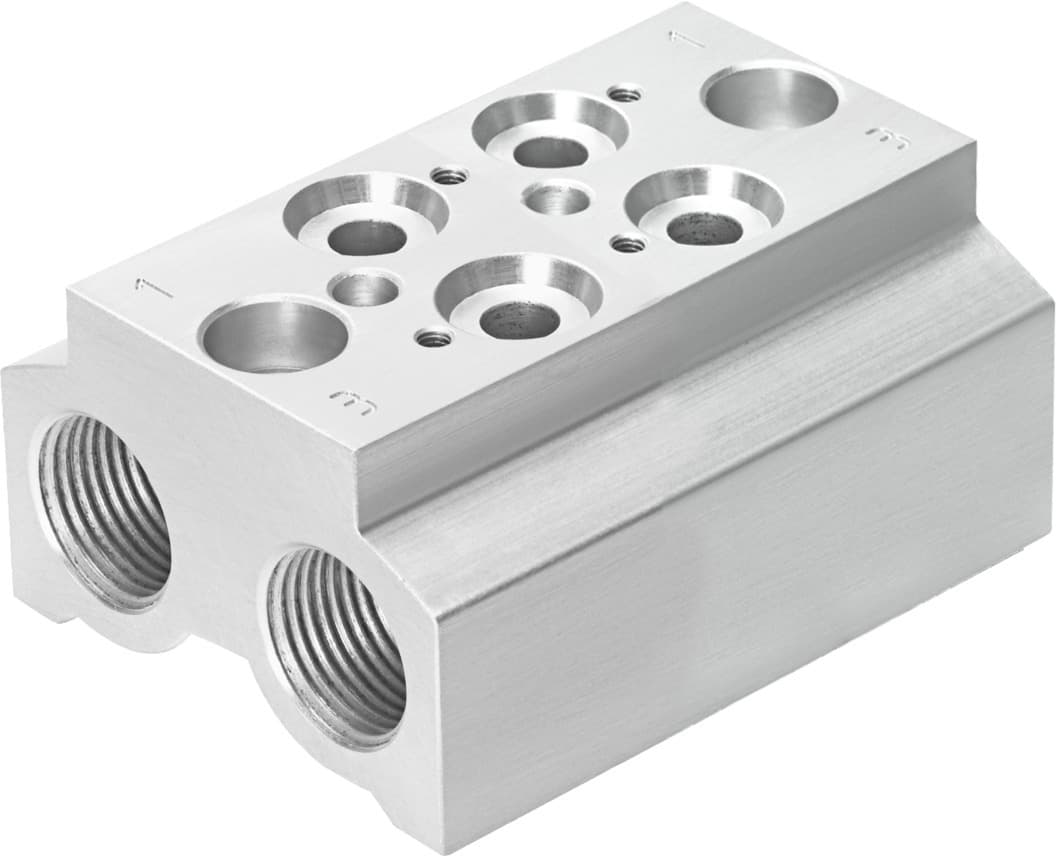

Key Features
- 1Suit various automation applications like robotics and FMS. 2、Feature a 16 mm grid for precise valve positioning. 3、Operate reliably from -13 to 145 PSI working pressure. 4、Construct from RoHS-compliant wrought aluminum alloy. 5、Mount easily with internal thread for NPT1/4-18 connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 1.22Nm | Product weight | 127.008g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
| Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550601 |
Specifications may be subject to change without notice
