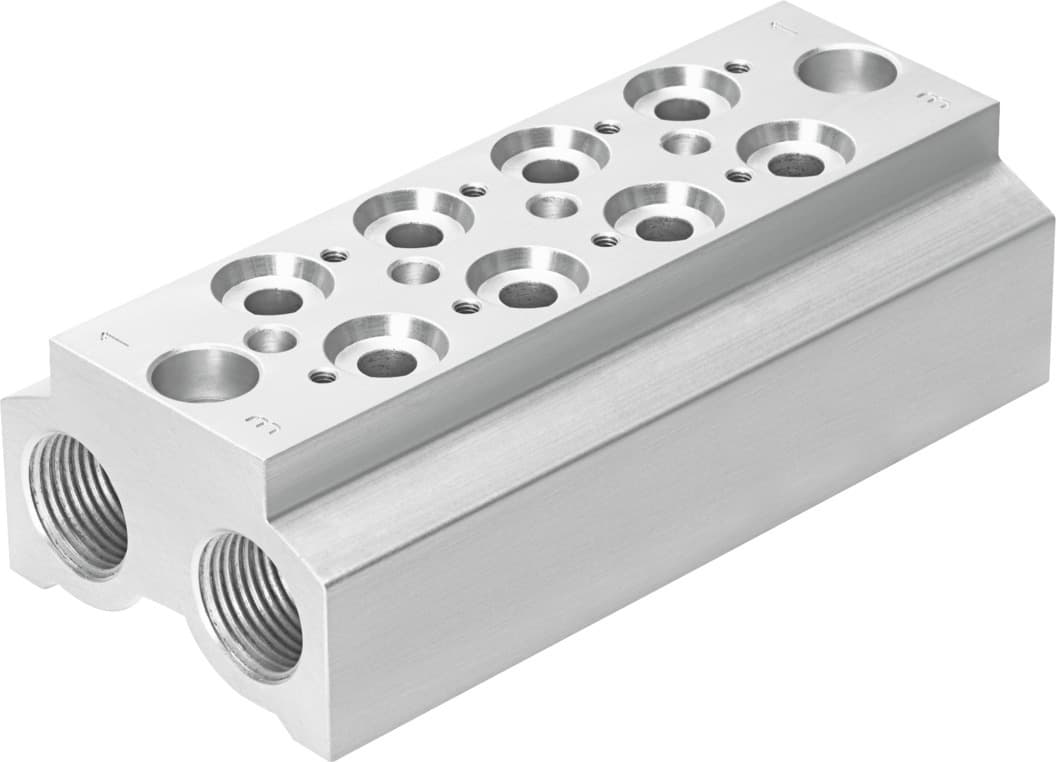

Key Features
- 1Optimize layout with a 10 mm grid dimension for flexible assembly. 2、Control up to 4 valve positions across 2 independent pressure zones. 3、Operate reliably from -0.9 to 10 bar with corrosion-resistant construction. 4、Simplify installation with versatile mounting and 1/4" connection options. 5、Reduce weight with durable, lightweight aluminum material.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Mounting position | Any |
| Max. no. of valve positions | 4 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 1.2Nm | Product weight | 201g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550552 |
Specifications may be subject to change without notice
