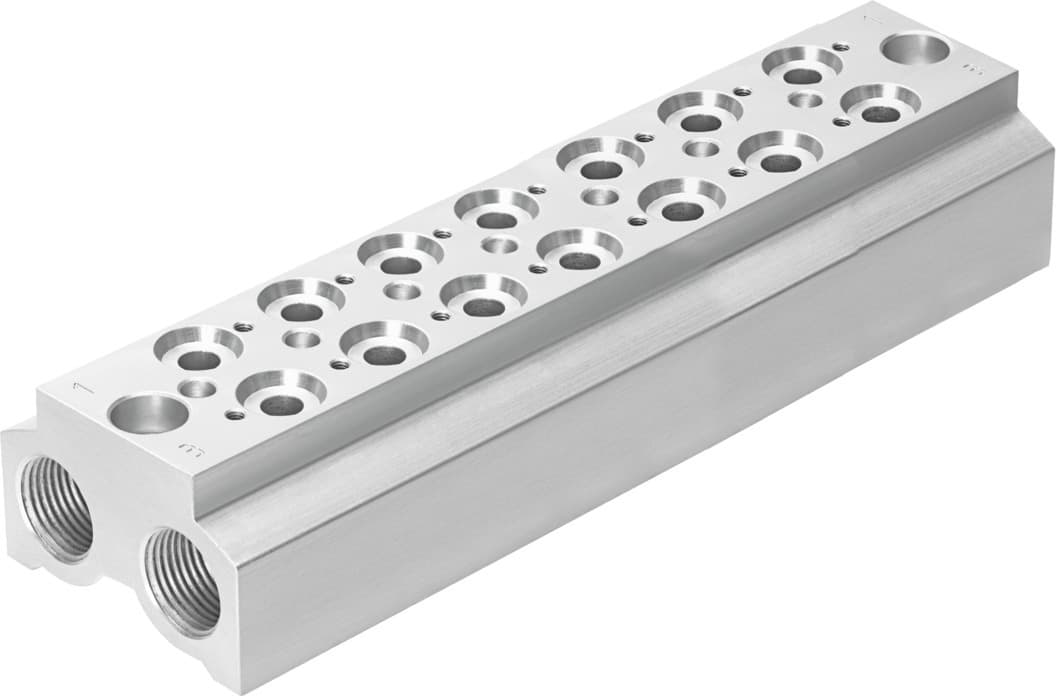

Key Features
- 1Control up to 7 valve positions and 2 pressure zones efficiently. 2、Integrate easily with standardized dimensions and mounting interfaces. 3、Ensure durability with corrosion-resistant wrought aluminum alloy construction. 4、Simplify wiring and communication using standardized IO-Link technology. 5、Protect components from moisture with a bulk production method.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Mounting position | Any |
| Max. no. of valve positions | 7 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 1.22Nm | Product weight | 307.598g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
| Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550606 |
Specifications may be subject to change without notice
