Key Features
- 1Optimize fluid control with 8 positions and 3 x 1/4" NPT ports.
- 2Integrate seamlessly into robotics and flexible manufacturing systems.
- 3Ensure reliable performance across a wide temperature range from -5°C to +50°C.

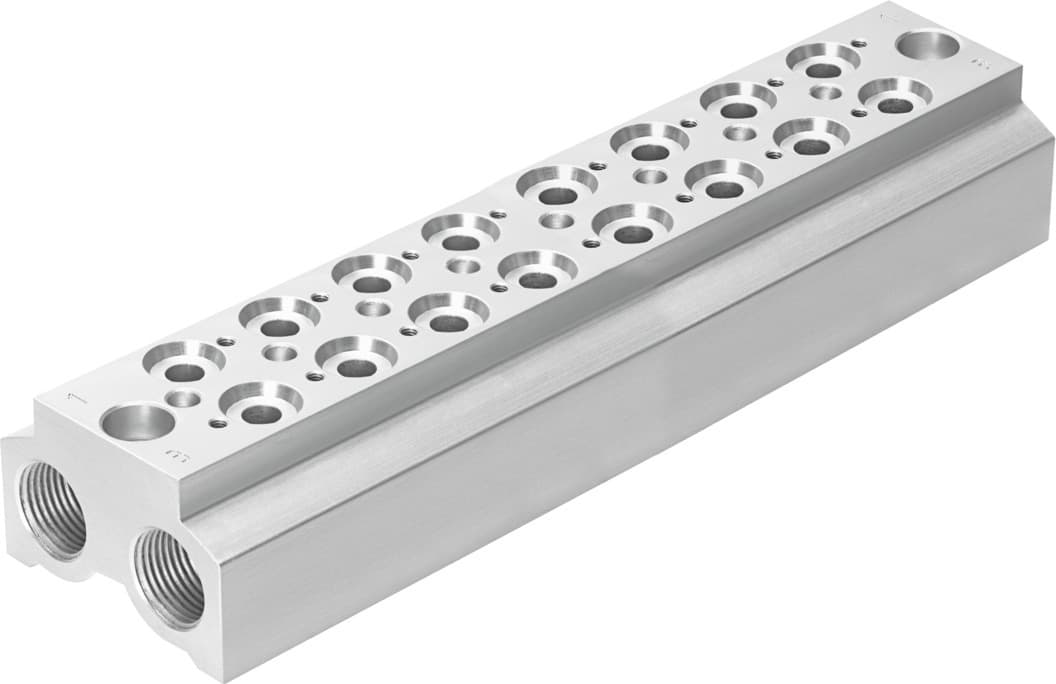

- 4Reduce maintenance costs with robust construction and durable components.
- 5Source the CPE10-3/2-PRS-1/4-8-NPT manifold from a single trusted supplier.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Mounting position | Any |
| Max. no. of valve positions | 8 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 1.22Nm | Product weight | 344.311g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
| Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550607 |
Specifications may be subject to change without notice
