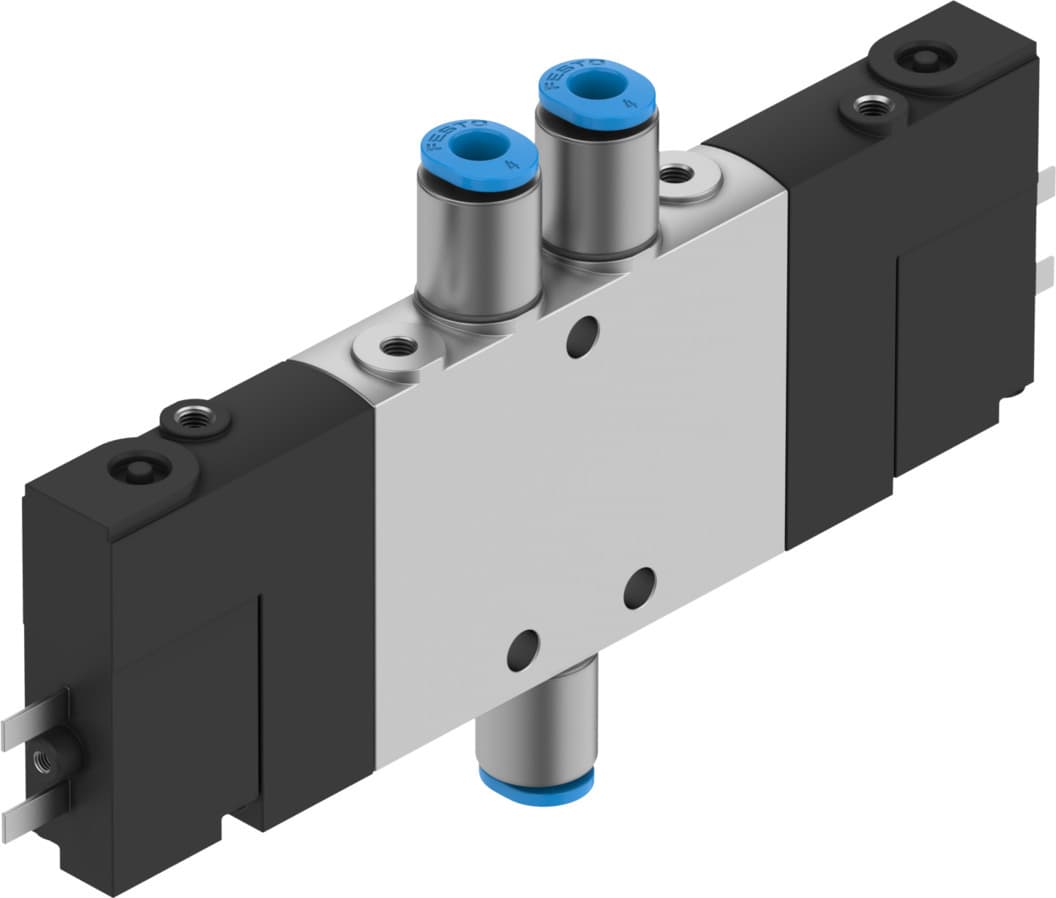

Key Features
- 1Maximize space with a 10mm wide, high-density valve design. 2、Achieve precise control via electric actuation for reliable operation. 3、Withstand harsh environments thanks to an IP65 protection rating. 4、Ensure reliable sealing and low maintenance with the soft sealing principle. 5、Utilize versatile 5/3 pressurized actuation for diverse automation tasks.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, pressurized | Actuation type | Electrical |
| Width | 10mm | Standard nominal flow rate | 180l/min |
| Pneumatic working port | QS-4 | Operating voltage | 24V DC |
| Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 4mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991034 |
| Valve position ID | Label holder | Lap | Overlap |
| Switching time off | 20ms | On switching time | 16ms |
| Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Electrical connection | 2-pin |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
| Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
| Pilot air port 14 | M3 | Pneumatic connection 1 | QS-4 |
| Pneumatic connection 2 | QS-4 | Pneumatic connection 3 | M7 |
| Pneumatic connection 4 | QS-4 | Pneumatic connection 5 | M7 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 533151 |
Specifications may be subject to change without notice
