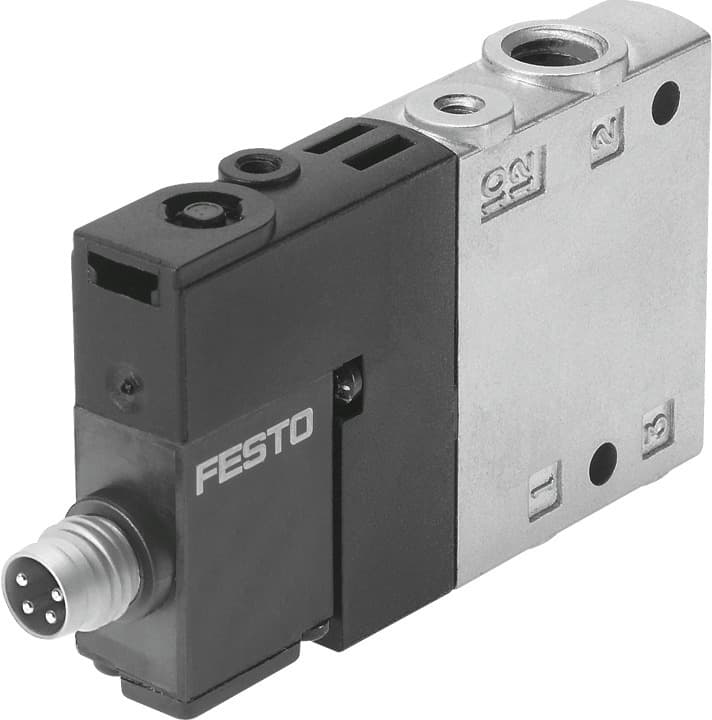

Key Features
- 1Deliver precise 3/2-way closed monostable operation for reliable pneumatic control. 2、Achieve a high 400 l/min nominal flow rate for demanding airflow applications. 3、Ensure durability with a robust die-cast aluminum body and NBR seals. 4、Operate efficiently with 24V DC and low 1.28 W power consumption. 5、Withstand harsh conditions using IP65 and IP67 protection ratings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Electrical |
| Width | 10mm | Standard nominal flow rate | 400l/min |
| Pneumatic working port | M7 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
| Degree of protection | IP65 IP67 With plug socket as per IEC 60529 | Nominal width | 4mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991655 | Valve position ID | Label holder |
| Lap | Overlap | Switching time off | 14ms |
| On switching time | 14ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1200μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.28 W | Permissible voltage fluctuations | -15 % / +10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque plug | 0.4Nm | Product weight | 40g |
| Electrical connection | 4-pin M8x1 | Type of mounting | With through-hole |
| Pilot exhaust air port 82 | M3 | Pilot air port 12 | M3 |
| Pneumatic connection 1 | M7 | Pneumatic connection 2 | M7 |
| Pneumatic connection 3 | M7 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 550233 |
Specifications may be subject to change without notice
