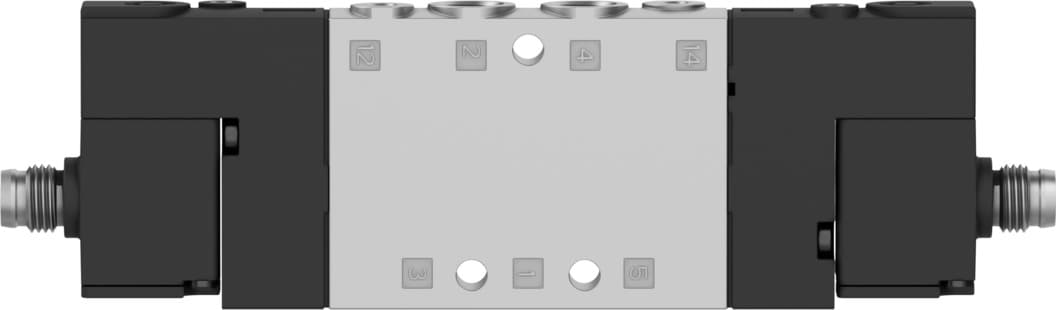

Key Features
- 1Optimize space with a compact 10mm width and M7 port. 2、Ensure reliable operation with 350L/min flow and 0.25MPa pressure. 3、Enhance system durability using RoHS-compliant, corrosion-resistant materials. 4、Reduce energy costs with a 24V DC coil at 1.28W power. 5、Simplify integration via a 4-pin M8 plug and internal pilot air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 10mm | Standard nominal flow rate | 350l/min |
| Pneumatic working port | M7 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 IP67 With plug socket as per IEC 60529 |
| Nominal width | 4mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991013 | Valve position ID | Label holder |
| Lap | Overlap | Changeover time | 8ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 1200μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Max. tightening torque plug | 0.4Nm |
| Product weight | 68g | Electrical connection | 4-pin M8x1 |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
| Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
| Pilot air port 14 | M3 | Pneumatic connection 1 | M7 |
| Pneumatic connection 2 | M7 | Pneumatic connection 3 | M7 |
| Pneumatic connection 4 | M7 | Pneumatic connection 5 | M7 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 550225 |
