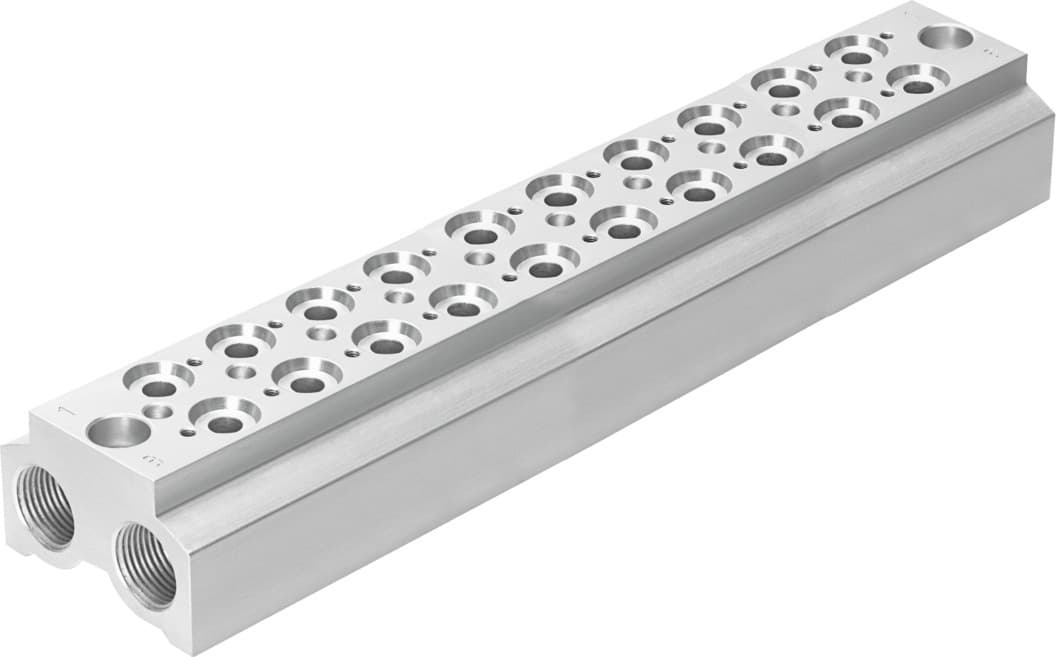

Key Features
- 1Accommodate up to 10 valve positions for organized system management. 2、Assemble in any position for flexible design and installation. 3、Operate from -13 to 145 Psi for versatile industrial use. 4、Resist moderate corrosion with CRC 2 rating for durability. 5、Connect securely via 3 x 3/8" NPT threads for easy installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 20mm | Mounting position | Any |
| Max. no. of valve positions | 10 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 1.2Nm | Product weight | 592g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550567 |
Specifications may be subject to change without notice
