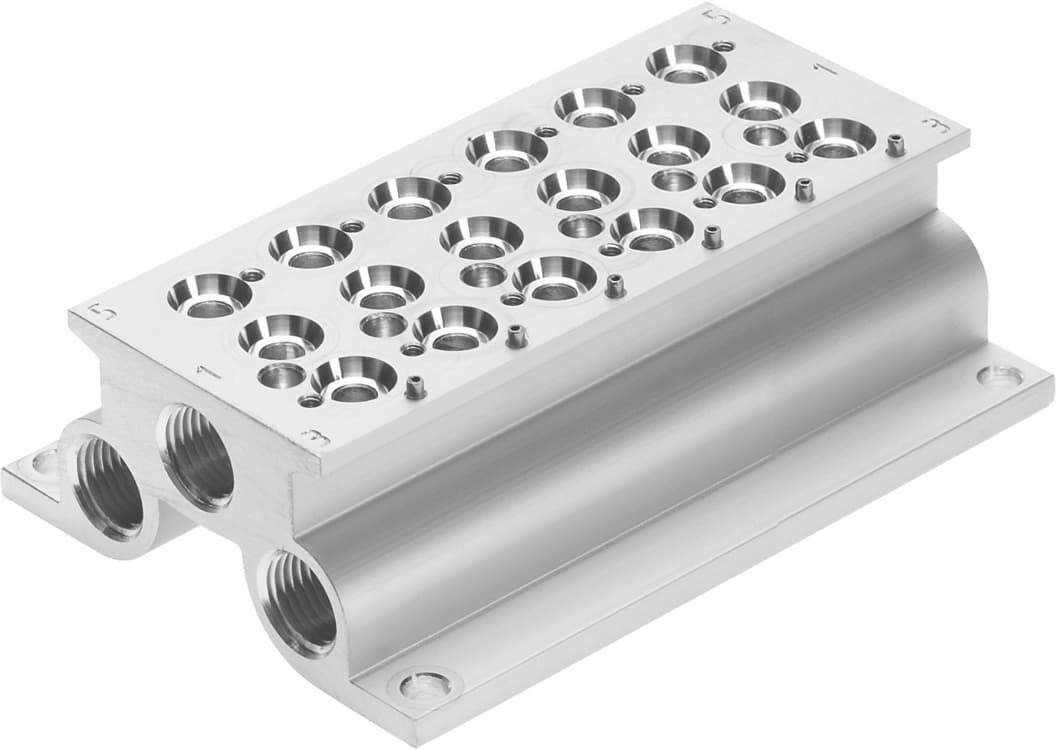

Key Features
- 1Control up to 6 valve positions and 2 pressure zones precisely. 2、Withstand 5 MPa burst pressure for reliable high-pressure operation. 3、Resist moderate corrosion with CRC 2 rating and LABS compliance. 4、Operate in a wide temperature range from -5 °F to 122 °F. 5、Install easily with through-hole mounting and female thread valves.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 20mm | Mounting position | Any |
| Max. no. of valve positions | 6 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 1.22Nm | Product weight | 579.474g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
| Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550083 |
Specifications may be subject to change without notice
