Key Features
- 1Accommodate up to 7 valve positions for versatile automation setups.
- 2Support two pressure zones for complex control systems.
- 3Ensure reliable performance with a 50 BAR burst pressure rating.
- 4Receive peace of mind with a standard 2-year warranty.
- 5Benefit from Festo's quality in precision pneumatic components.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 20mm | Mounting position | Any |
| Max. no. of valve positions | 7 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 1.22Nm | Product weight | 665.8g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
| Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550084 |
Specifications may be subject to change without notice

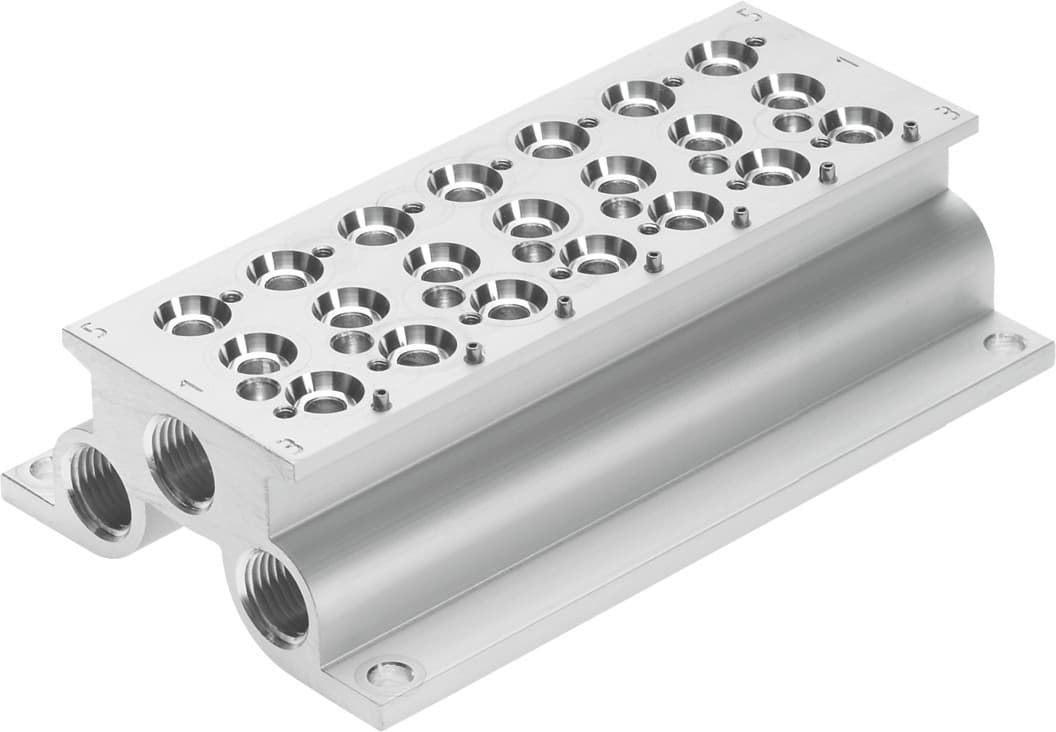

Still deciding on cpe14-prs-3/8-7-npt?
