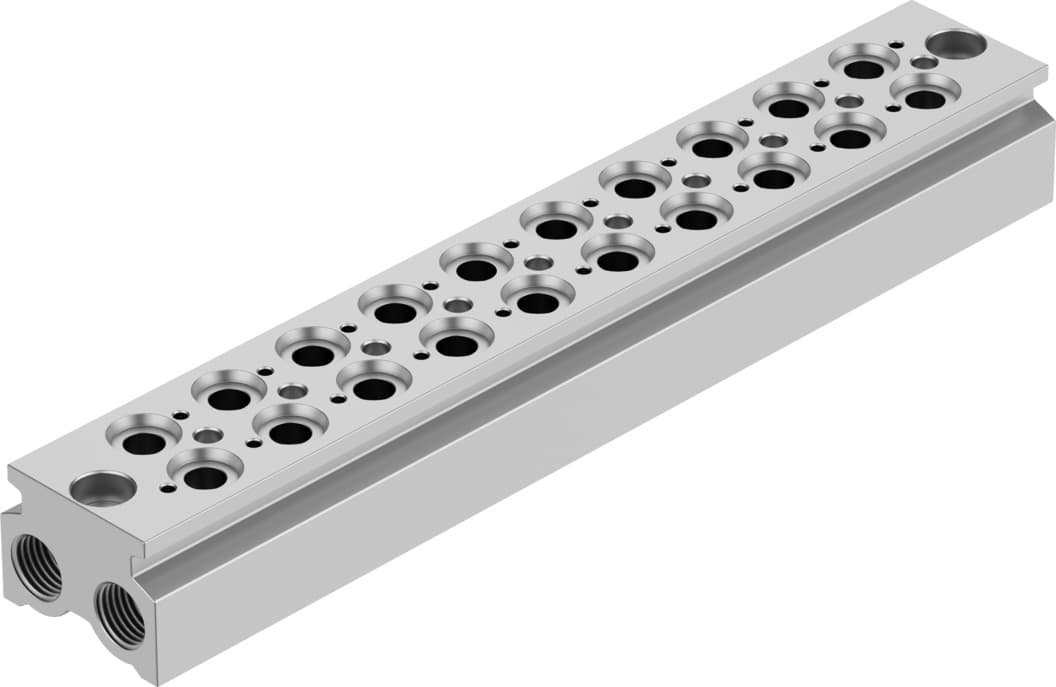

Key Features
- 1Engineer reliable pneumatic control for diverse industrial applications. 2、Utilize a 26 mm grid and optional mounting for flexible assembly. 3、Resist moderate corrosion stress (CRC 2) in demanding environments. 4、Handle broad pressure ranges from -13 to 145 Psi. 5、Construct from RoHS-compliant wrought aluminum alloy for sustainability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 26mm | Mounting position | Any |
| Max. no. of valve positions | 10 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 2Nm | Product weight | 908g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550576 |
Specifications may be subject to change without notice
