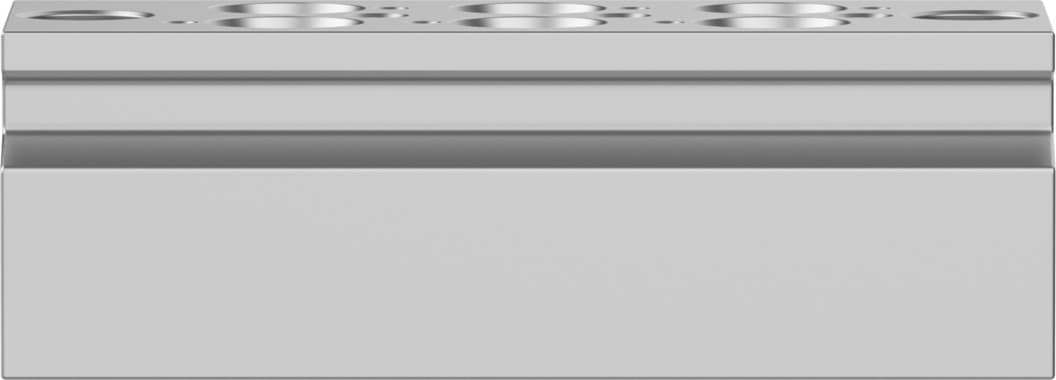

Key Features
- 1Support up to 3 valve positions for complex pneumatic systems. 2、Feature a versatile 26 mm grid for flexible assembly in any position. 3、Operate reliably within a pressure range of -13 to 145 Psi. 4、Ensure efficient flow control with a maximum of 2 pressure zones. 5、Construct with RoHS-compliant materials for corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 26mm | Mounting position | Any |
| Max. no. of valve positions | 3 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 2Nm | Product weight | 346g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550569 |
Specifications may be subject to change without notice
