Key Features

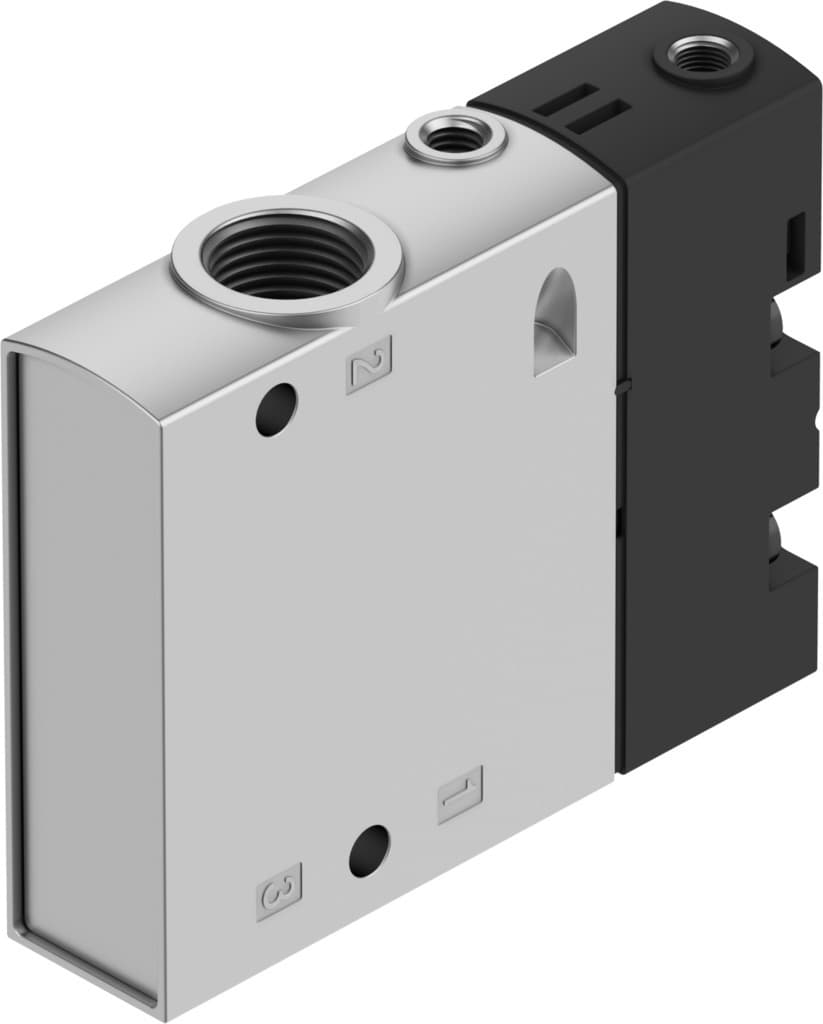

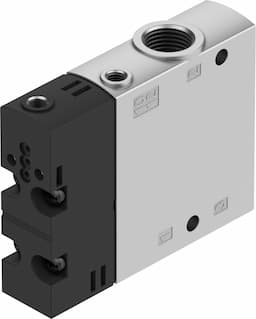

- 1Design compact assemblies with a versatile 3/2-way valve function.
- 2Achieve high flow rates up to 1300 l/min for demanding applications.
- 3Ensure reliable actuation via pilot interface to ISO 15218.
- 4Utilize robust die-cast aluminum construction with NBR seals.
- 5Meet safety standards with maritime and EU/UK certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Via ISO 15218 pilot control interface |
| Width | 18mm | Standard nominal flow rate | 1300l/min |
| Pneumatic working port | G1/4 | Operating pressure | 2.5bar 10bar |
| Structural design | Piston gate valve | Reset method | Pneumatic spring |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| Certificate issuing authority | DNV-TAA000032X UL MH19482 | Nominal width | 8mm |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991655 | Valve position ID | Label holder |
| Lap | Overlap | Switching time off | 30ms |
| On switching time | 36ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 3300μs | Max. negative test pulse on 1 signal | 3100μs |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Product weight | 110g |
| Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
| Pilot air port 12 | M5 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 550163 |
