Key Features

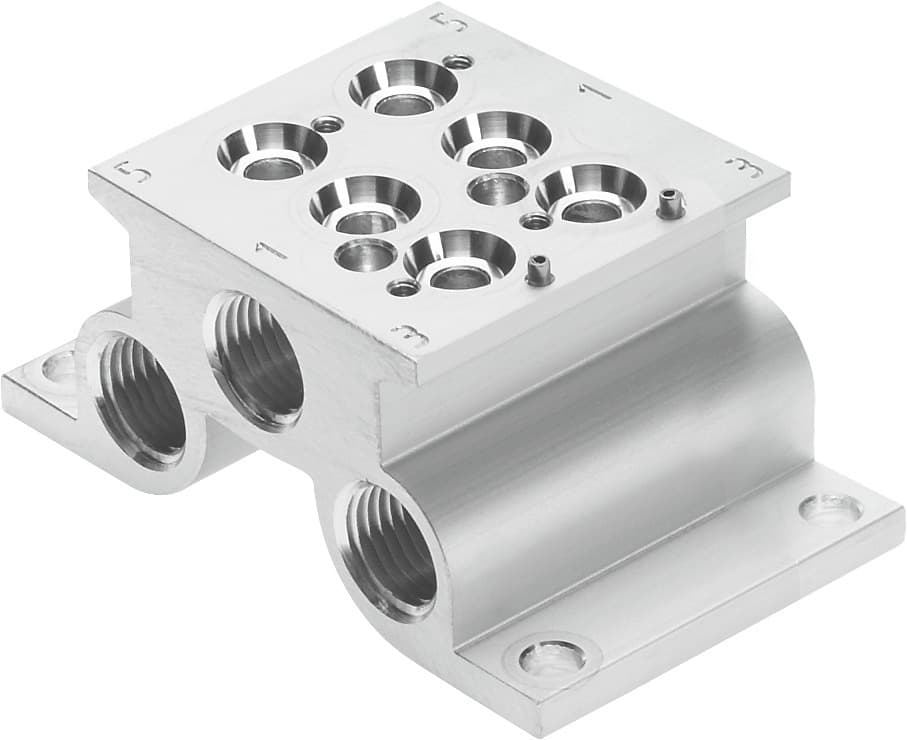

- 1Streamline manufacturing with a fixed-grid manifold for 2 valve positions. 2、Ensure reliable connections using 3 x 3/8" NPT threaded ports. 3、Install the CPE18-PRS-3/8-2-NPT block in any position for flexible setup. 4、Integrate seamlessly into systems with its standard 26 mm grid dimension. 5、Enhance productivity by minimizing errors in pneumatic control applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 26mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 2.034Nm | Product weight | 350.264g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
| Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550088 |
Specifications may be subject to change without notice
