Key Features

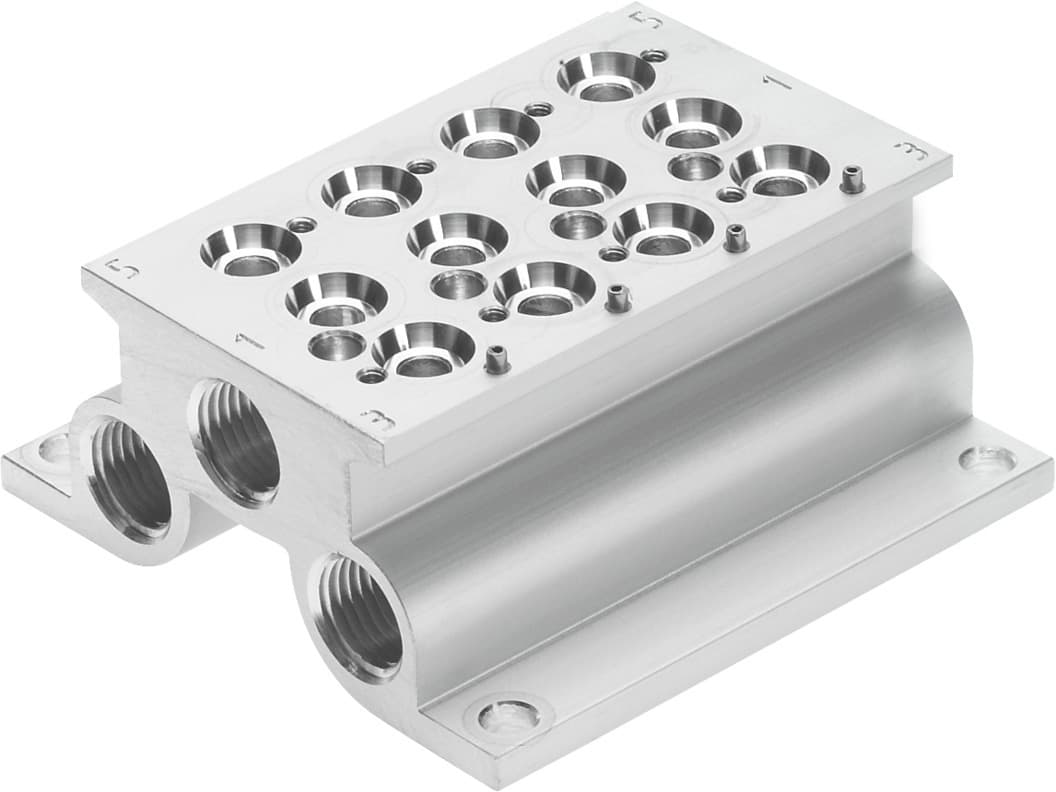

- 1Optimize pneumatic control with a reliable 4-position manifold. 2、Integrate easily using 3 x 3/8" NPT threaded connections. 3、Ensure durability with Festo's high-quality CPE series construction. 4、Achieve seamless system integration with compatible Festo components. 5、Reduce installation time via standardized dimensions and interfaces.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 26mm | Mounting position | Any |
| Max. no. of valve positions | 4 | Max. no. of pressure zones | 2 |
| Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 2.034Nm | Product weight | 606.265g |
| Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
| Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550090 |
Specifications may be subject to change without notice
