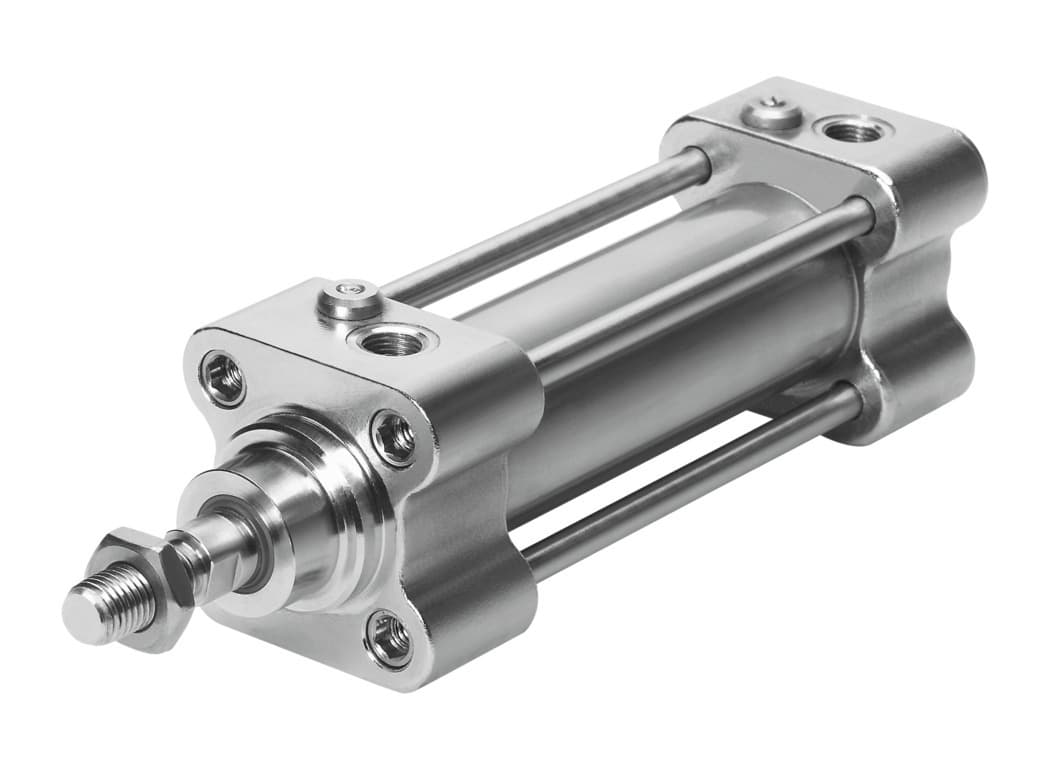

crdng-32- -ppv-a
Product ID:4064
Updated: 2026/4/3
Key Features
- 1Achieve versatile motion with a 10 mm to 2000 mm stroke range. 2、Ensure robust performance using a 32 mm piston and M10x1.25 rod thread. 3、Reduce wear and ensure smooth stops with adjustable pneumatic cushioning. 4、Benefit from excellent corrosion resistance via high-alloy stainless steel construction. 5、Guarantee precise, reliable operation with ISO 15552 standard compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 2000mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 80°C |
| Cushioning length | 19mm | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 154g |
| Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 1040g |
| Additional weight per 10?mm stroke | 25g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1/8 | Cover material | Cast stainless steel |
| Seals material | TPE-U(PU) | Housing material | High-alloy stainless steel |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Nut material | High-alloy stainless steel |
| Material of bearing | POM | Collar nut material | High-alloy stainless steel |
| Tie rod material | High-alloy stainless steel | Manufacturer ID | 160884 |
Specifications may be subject to change without notice
