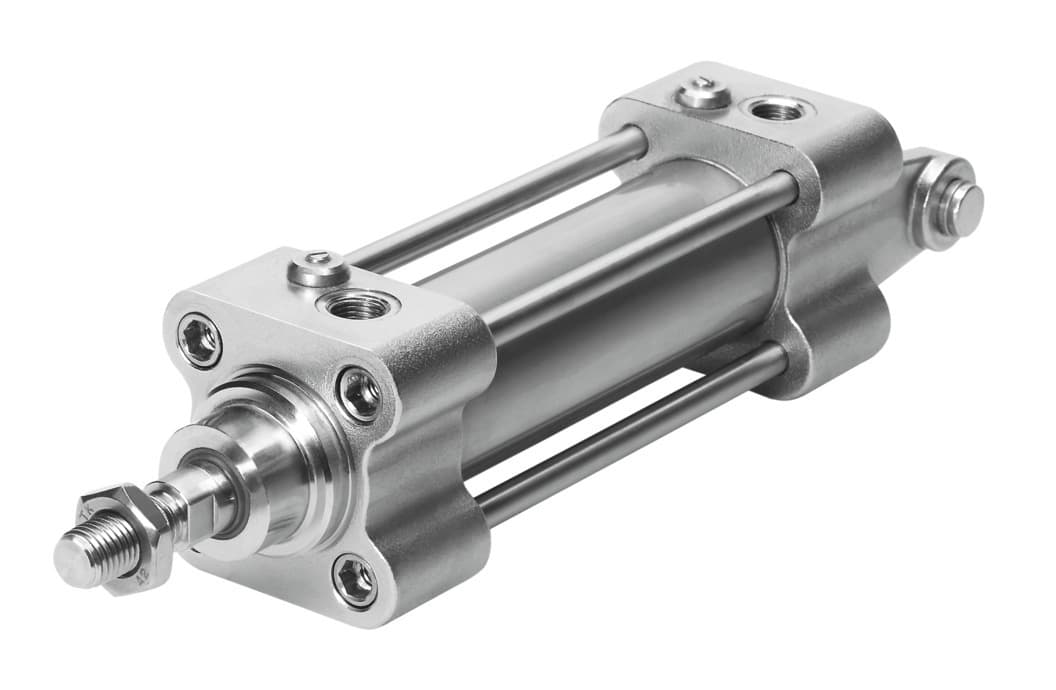

crdngs-80- -ppv-a
Product ID:4074
Updated: 2026/4/3
Key Features
- 1Feature an 80 mm piston diameter for robust performance in demanding applications. 2、Adjust pneumatic cushioning at both ends for optimal control and reduced wear. 3、Conform to ISO 15552 standard for broad system compatibility. 4、Construct from high-alloy stainless steel for superior corrosion resistance. 5、Mount via female thread or accessories for flexible installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 2000mm | Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 | Based on norm | ISO 15552 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod Pivoting clevis Tie rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | End cap with swiveling rod eye | Operating pressure | 0.6bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 80°C | Cushioning length | 30mm |
| Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
| Moving mass at 0?mm stroke | 1018g | Additional moving mass per 10?mm stroke | 39g |
| Basic weight with 0?mm stroke | 5804g | Additional weight per 10?mm stroke | 92g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
| Cover material | Cast stainless steel | Seals material | TPE-U(PU) |
| Housing material | High-alloy stainless steel | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Nut material | High-alloy stainless steel | Material of bearing | POM |
| Collar nut material | High-alloy stainless steel | Tie rod material | High-alloy stainless steel |
| Manufacturer ID | 160894 |
Specifications may be subject to change without notice
