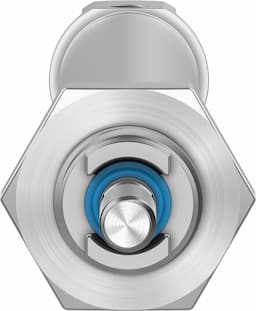

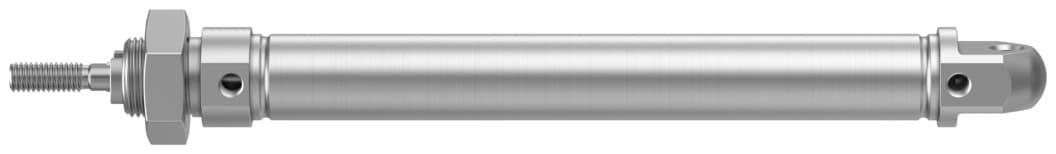

crdsnu-16-100-p-a
Product ID:433
Updated: 2026/7/4
Key Features
- 1Achieve precise motion with a 100 mm stroke and 16 mm piston diameter.
- 2Reduce noise and vibration via integrated elastic cushioning rings.
- 3Ensure reliable double-acting operation conforming to ISO 6432 standards.
- 4Resist corrosion in harsh settings with high-alloy stainless steel construction.
- 5Integrate seamlessly into compressed air systems per ISO 8573-1:2010.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 100mm | Piston diameter | 16 mm |
| Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
| Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
| Moving mass at 0?mm stroke | 21g | Additional moving mass per 10?mm stroke | 2g |
| Basic weight with 0?mm stroke | 130g | Additional weight per 10?mm stroke | 5g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 8152555 |
Specifications may be subject to change without notice
