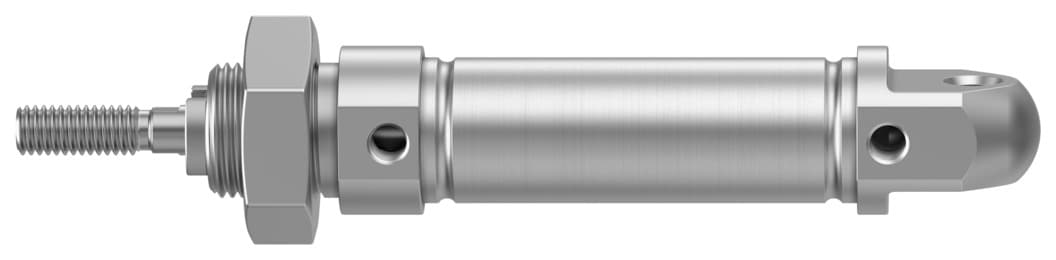

crdsnu-16-15-p-a
Product ID:439
Updated: 2026/4/3
Key Features
- 1Utilize a 16mm piston diameter and 15mm stroke for versatile compressed air applications. 2、Ensure smooth operation and reduced wear with elastic cushioning rings at both ends. 3、Integrate easily with standardized ISO 6432 dimensions and mounting interfaces. 4、Operate reliably in temperatures from -20°C to 80°C with double-acting compressed air. 5、Benefit from high corrosion resistance (CRC 3) and high-alloy stainless steel construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 16 mm |
| Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
| Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
| Moving mass at 0?mm stroke | 21g | Additional moving mass per 10?mm stroke | 2g |
| Basic weight with 0?mm stroke | 130g | Additional weight per 10?mm stroke | 5g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 8152549 |
Specifications may be subject to change without notice
