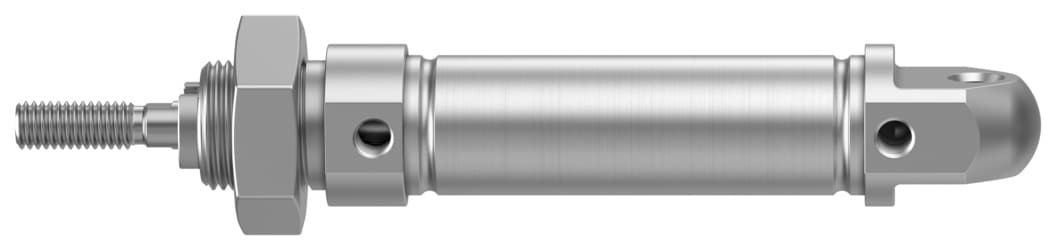

crdsnu-16-20-p-a
Product ID:438
Updated: 2026/4/3
Key Features
- 1Construct from high-alloy stainless steel for superior durability and corrosion resistance. 2、Integrate elastic cushioning rings at both ends to ensure smooth operation and minimize wear. 3、Comply with ISO 6432 standards for guaranteed reliability and broad compatibility. 4、Engineer for precise double-acting operations using compressed air for efficient control. 5、Enable flexible mounting options to suit diverse industrial automation applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 16 mm |
| Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
| Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
| Moving mass at 0?mm stroke | 21g | Additional moving mass per 10?mm stroke | 2g |
| Basic weight with 0?mm stroke | 130g | Additional weight per 10?mm stroke | 5g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 8152550 |
Specifications may be subject to change without notice
