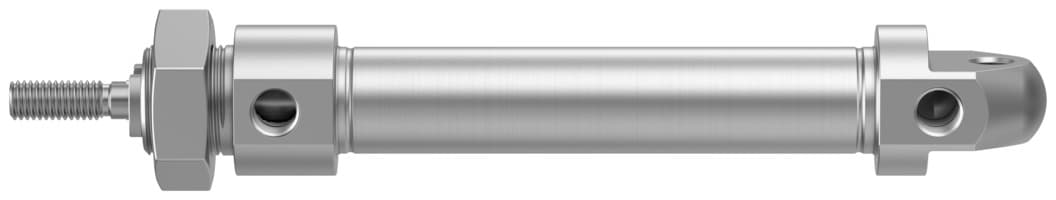

crdsnu-20-80-p-a
Product ID:426
Updated: 2026/4/3
Key Features
- 1Conform to ISO 6432 standards for guaranteed precision and reliability. 2、Utilize a 20mm piston diameter and 80mm stroke for versatile industrial applications. 3、Benefit from elastic cushioning at both ends for smooth operation and reduced wear. 4、Construct with high-alloy stainless steel for high corrosion resistance (CRC 3). 5、Operate with compressed air per ISO 8573-1:2010 for lubricated performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 80mm | Piston diameter | 20 mm |
| Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
| Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
| Moving mass at 0?mm stroke | 42g | Additional moving mass per 10?mm stroke | 4g |
| Basic weight with 0?mm stroke | 310g | Additional weight per 10?mm stroke | 7g |
| Type of mounting | With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 8152563 |
Specifications may be subject to change without notice
