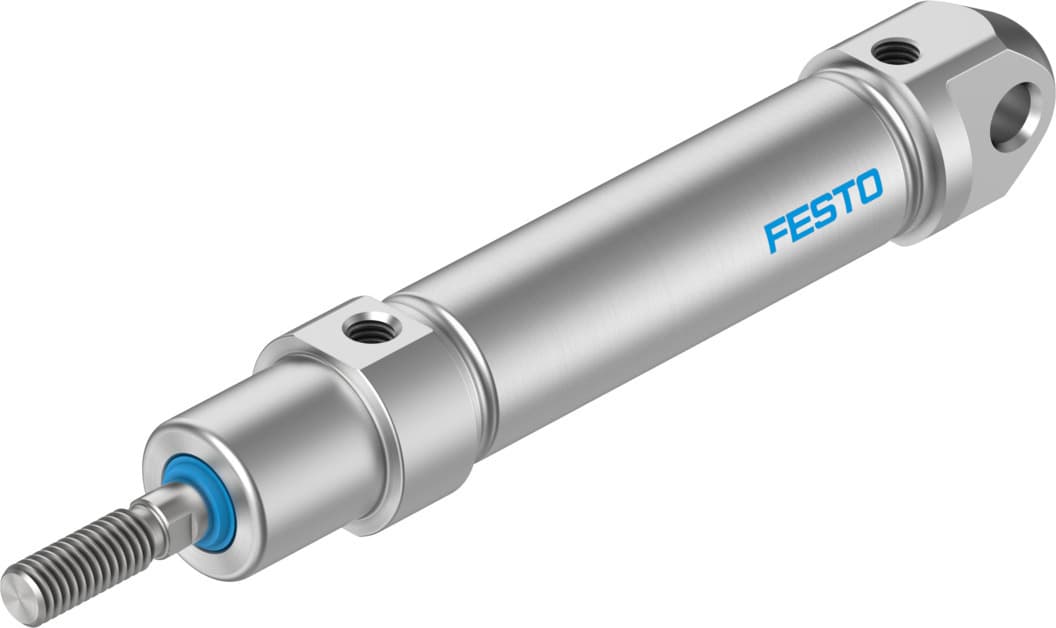

crdsnu-b-16-80-p-a-mg-a1
Product ID:16248
Updated: 2026/4/3
Key Features
- 1Achieve precise motion control with a 16mm bore and 80mm stroke. 2、Operate efficiently using a double-acting design for versatile applications. 3、Ensure quality and consistency with full ISO 6432 standard compliance. 4、Resist corrosion in harsh environments via stainless steel construction. 5、Reduce wear and enable smooth operation with flexible cushioning rings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 80mm | Piston diameter | 16 mm |
| Based on norm | ISO 6432 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | 0°C 80°C |
| Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
| Moving mass at 0?mm stroke | 21g | Additional moving mass per 10?mm stroke | 2.2g |
| Basic weight with 0?mm stroke | 130g | Additional weight per 10?mm stroke | 4.8g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 8073763 |
Specifications may be subject to change without notice
