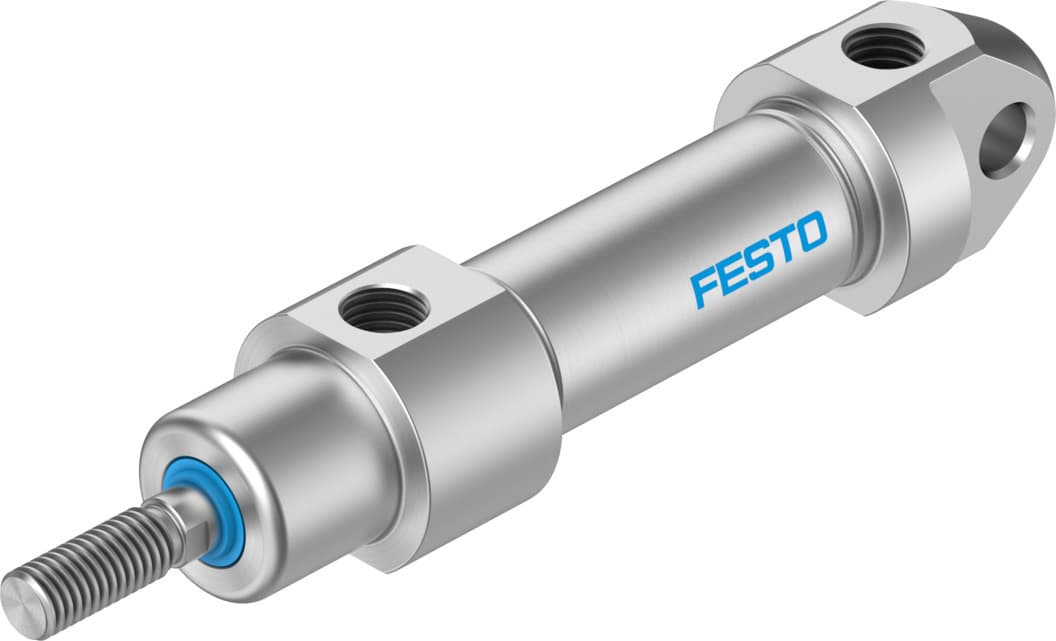

crdsnu-b-20-40-pps-a-mg-a1
Product ID:16259
Updated: 2026/4/3
Key Features
- 1Achieve CRC 4 high corrosion resistance for harsh environments. 2、Utilize PPS self-adjusting cushioning for smooth operation. 3、Comply with ISO 6432 standard for guaranteed compatibility. 4、Enable reliable double-acting operation with compressed air. 5、Apply in food-safe scenarios per supplementary documentation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 20 mm |
| Based on norm | ISO 6432 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | 0°C 80°C |
| Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
| Moving mass at 0?mm stroke | 42.1g | Additional moving mass per 10?mm stroke | 3.9g |
| Basic weight with 0?mm stroke | 310g | Additional weight per 10?mm stroke | 7.2g |
| Type of mounting | With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 8073978 |
Specifications may be subject to change without notice
