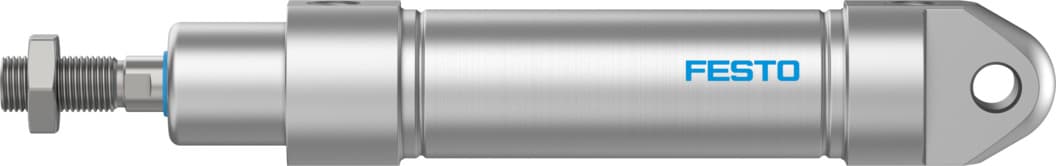

crdsnu-b-25-125-pps-a-mg-a1
Product ID:7936
Updated: 2026/4/5
Key Features
- 1Ensure precise automation with the high-performance CRDSNU-B-25-125-PPS-A-MG-A1 cylinder. 2、Reduce system wear using self-adjusting pneumatic cushioning (PPS). 3、Simplify integration with ISO 6432 standard dimensions and mounts. 4、Install flexibly in any position for versatile application design. 5、Withstand harsh conditions thanks to CRC 4 corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 125mm | Piston diameter | 25 mm |
| Based on norm | ISO 6432 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | 0°C 80°C |
| Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
| Moving mass at 0?mm stroke | 73g | Additional moving mass per 10?mm stroke | 6.2g |
| Basic weight with 0?mm stroke | 410g | Additional weight per 10?mm stroke | 11g |
| Type of mounting | With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 2159642 |
Specifications may be subject to change without notice
