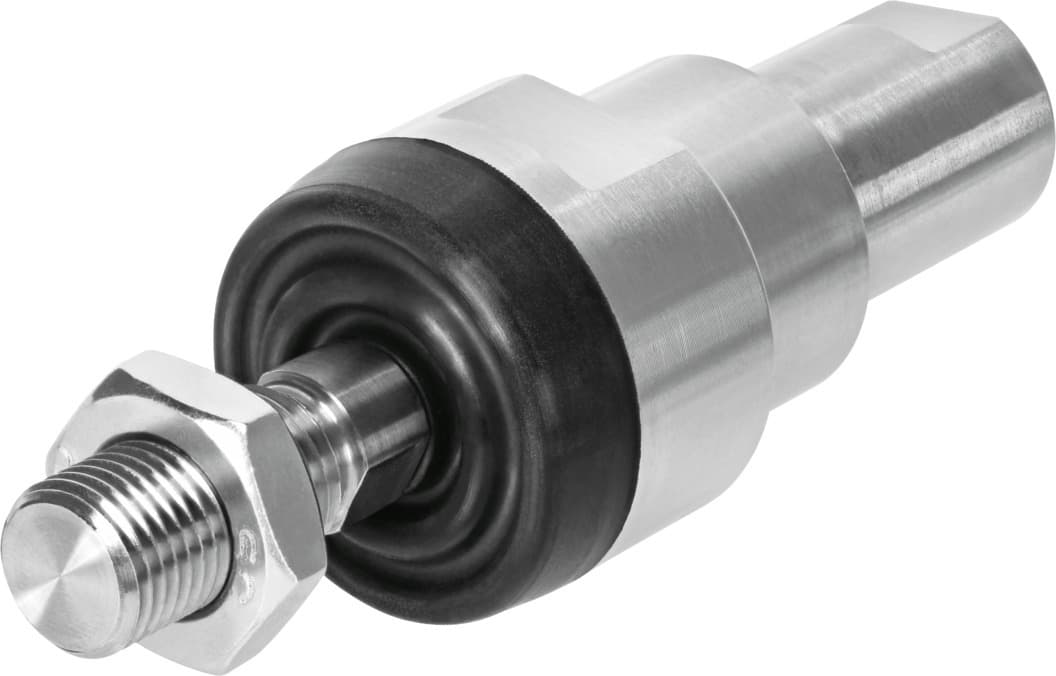

crfk-m12x1,25
Product ID:7971
Updated: 2026/4/5
Key Features
- 1Achieve CRC 4 high corrosion resistance for harsh environments. 2、Ensure precise alignment to reduce cylinder wear and tear. 3、Meet LABS and VDMA24364-B2-L industry compliance standards. 4、Utilize high-alloy stainless steel construction for maximum durability. 5、Apply in diverse sectors like Li-ion battery production with material restrictions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M12x1.25 | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -20°C 100°C | Product weight | 230g |
| Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
| Threaded bolt material | High-alloy stainless steel | Cap material | EPDM |
| Nut material | High-alloy stainless steel | Manufacturer ID | 2305779 |
Specifications may be subject to change without notice
