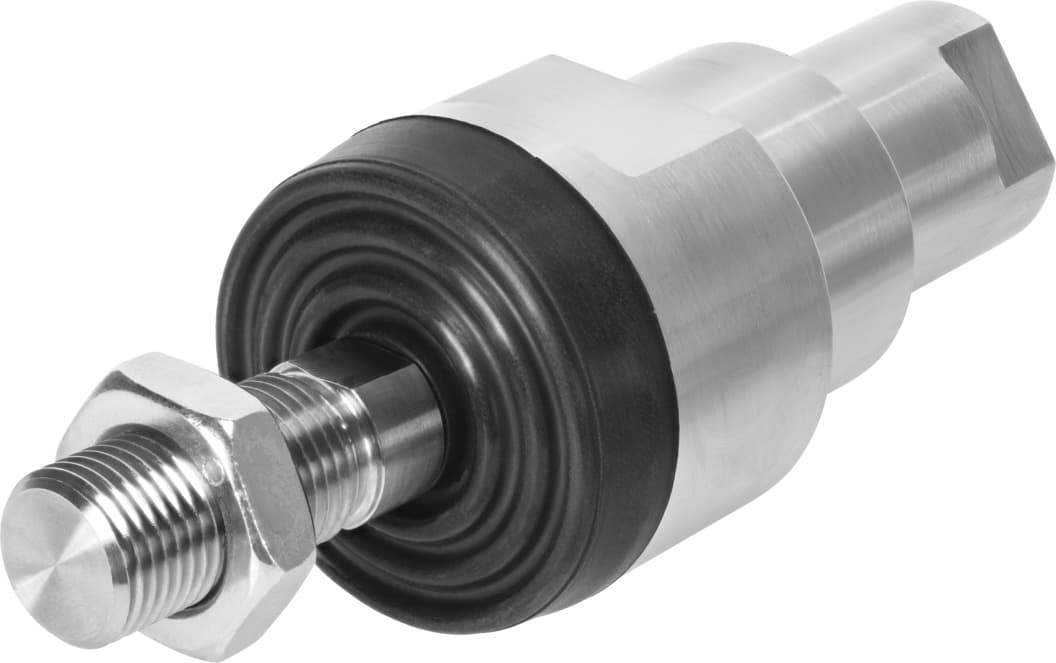

crfk-m16x1,5
Product ID:7997
Updated: 2026/4/5
Key Features
- 1Achieve corrosion resistance class 4 for severe environments. 2、Operate reliably from -20 to 100 °C ambient temperature. 3、Utilize high-alloy stainless steel housing, free of copper and PTFE. 4、Enable easy rod connection with the self-aligning mechanism. 5、Attach to pneumatic cylinders for versatile system integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M16x1.5 | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -20°C 100°C | Product weight | 670g |
| Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
| Threaded bolt material | High-alloy stainless steel | Cap material | EPDM |
| Nut material | High-alloy stainless steel | Manufacturer ID | 2490673 |
Specifications may be subject to change without notice
