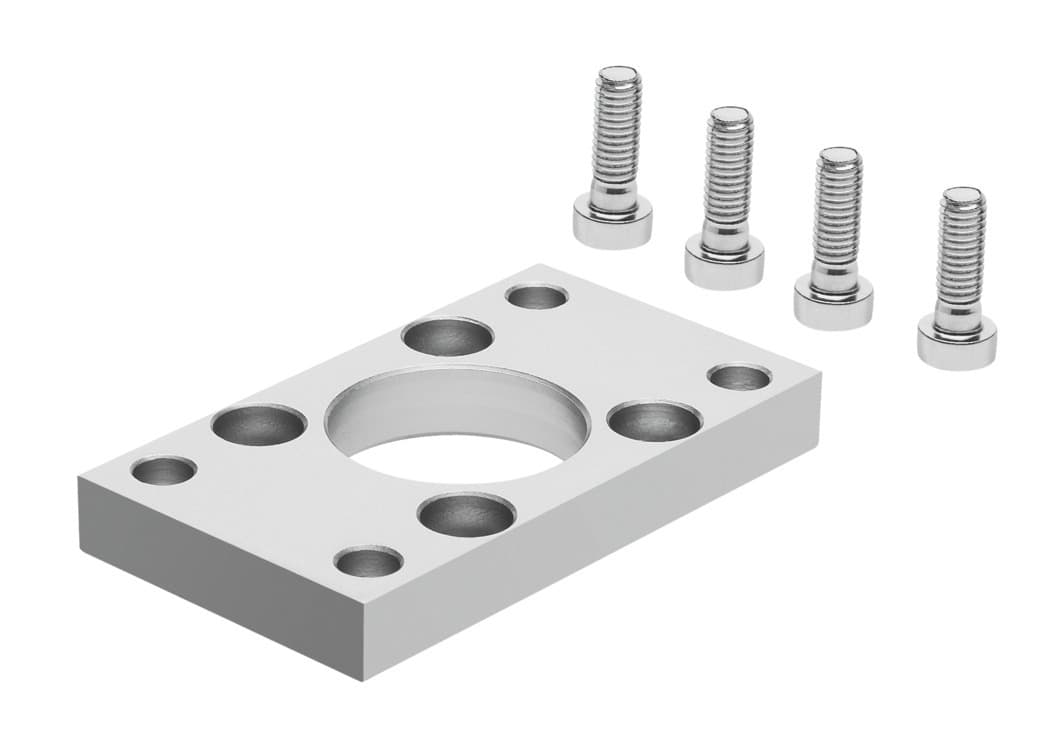

crfng-40
Product ID:4202
Updated: 2026/4/3
Key Features
- 1Achieve CRC 4 corrosion resistance with high-alloy stainless steel. 2、Install in various optional mounting positions for flexibility. 3、Ensure broad system compatibility with ISO 15552 and other key standards. 4、Note the exclusion for use in specific Li-ion battery production processes. 5、Operate reliably in temperatures from -40 °C to 150 °C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Mounting position | Any |
| Conforms to standard | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -40°C 150°C | Product weight | 291g |
| Mounting material | High-alloy stainless steel | Material of screws | High-alloy stainless steel |
| Manufacturer ID | 161847 |
Specifications may be subject to change without notice
