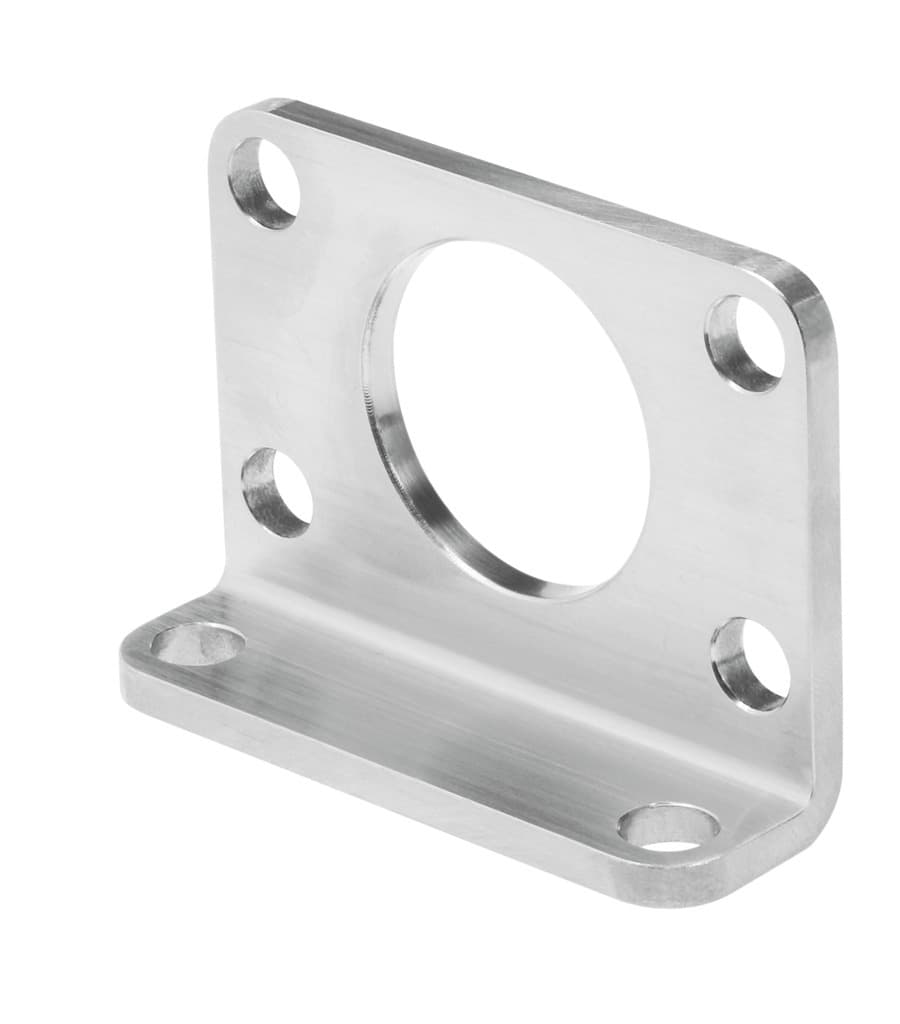

crfv-63
Product ID:4215
Updated: 2026/4/3
Key Features
- 1Constructed from high-alloy stainless steel for superior corrosion resistance. 2、Assemble in any position for maximum application flexibility. 3、Ensure environmental safety with Cu-free and PTFE-free RoHS compliance. 4、Reduce system load with a lightweight design of only 365 grams. 5、Integrate seamlessly with cylinders like CRDSW and CRDG.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Mounting position | Any |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Product weight | 367g |
| Note on materials | RoHS-compliant | Mounting material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel | Manufacturer ID | 161861 |
Specifications may be subject to change without notice
