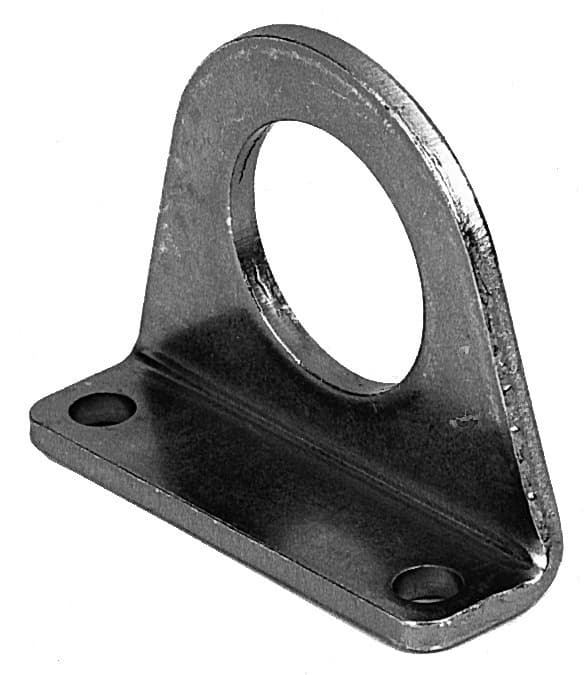

crhbn-12/16x1
Product ID:4220
Updated: 2026/4/3
Key Features
- 1Achieve CRC4 corrosion resistance for durability in harsh environments. 2、Utilize optional mounting positions for flexible system design. 3、Construct with high-alloy stainless steel for RoHS compliance. 4、Ensure LABS (PWIS) conformity for clean industry suitability. 5、Incorporate a high-alloy steel nut for added strength and reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12/16 | Mounting position | Any |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Product weight | 43g |
| Note on materials | RoHS-compliant | Mounting material | High-alloy stainless steel |
| Nut material | High-alloy steel | Manufacturer ID | 161866 |
Specifications may be subject to change without notice
