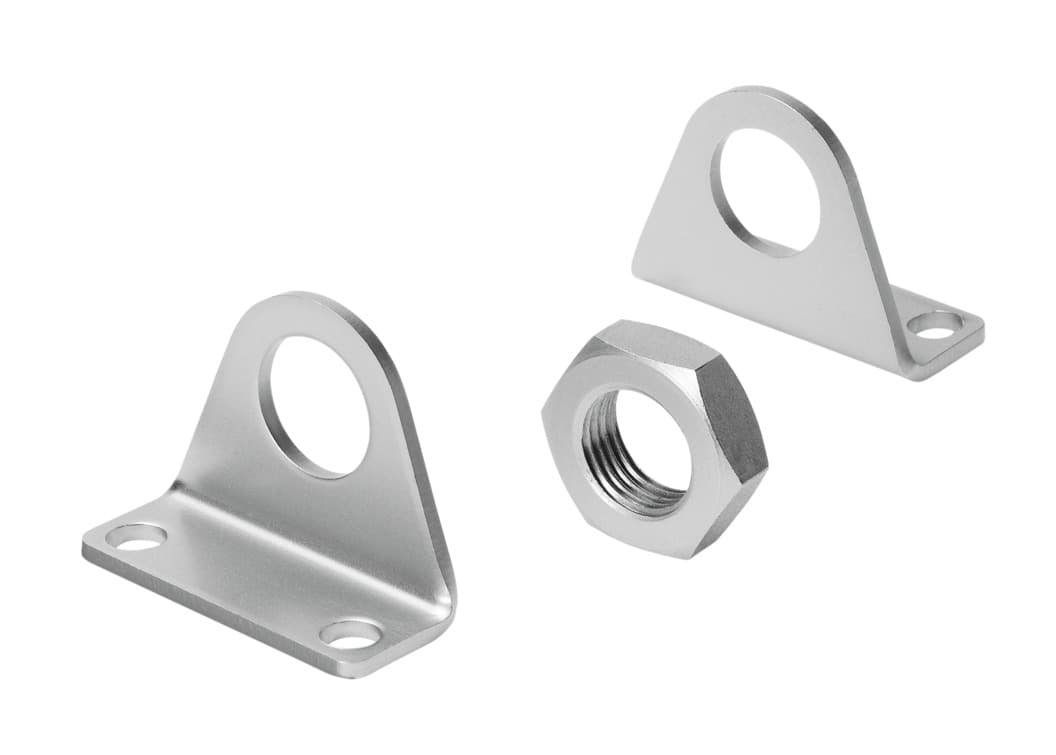

crhbn-12/16x2
Product ID:4518
Updated: 2026/4/3
Key Features
- 1Achieve CRC 4 corrosion resistance for harsh environments. 2、Select optional mounting positions for versatile installation. 3、Utilize high-alloy stainless steel construction for durability. 4、Comply with RoHS standards, free from copper and PTFE. 5、Note exclusion from Li-ion battery production per guidelines.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12/16 | Mounting position | Any |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | Product weight | 107g |
| Note on materials | RoHS-compliant | Mounting material | High-alloy stainless steel |
| Nut material | High-alloy steel | Manufacturer ID | 162999 |
Specifications may be subject to change without notice
