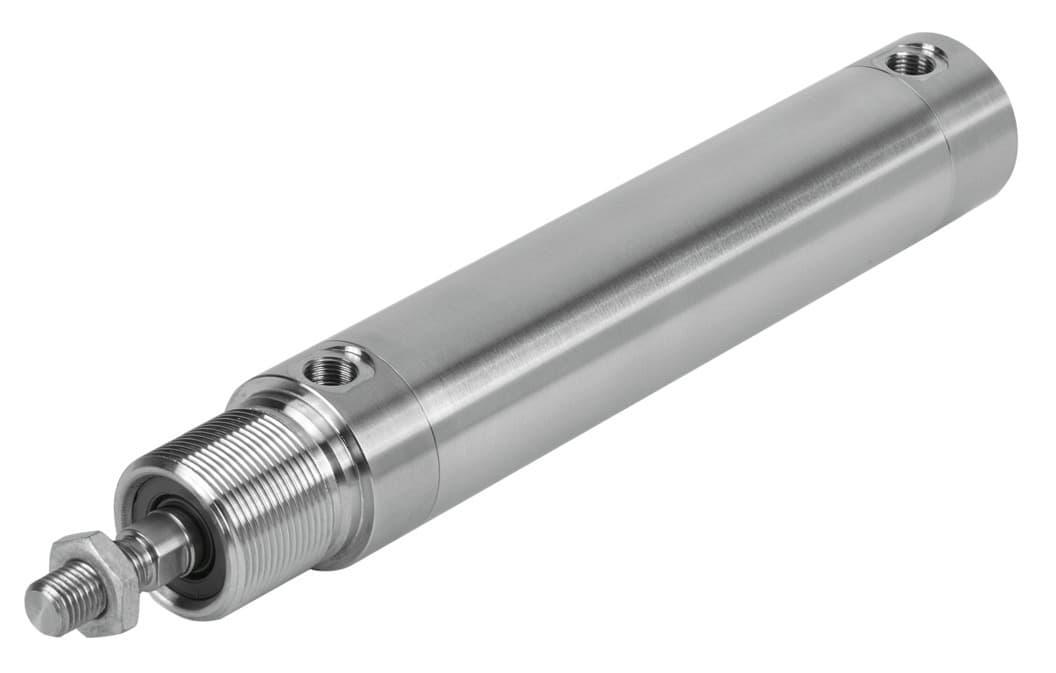

crhd-80- -ppv-a-mq
Product ID:7543
Updated: 2026/4/4
Key Features
- 1Utilize high-alloy stainless steel for superior corrosion resistance. 2、Adjust pneumatic cushioning at both ends to minimize vibration. 3、Enable precise position detection via proximity switches. 4、Operate in temperatures from -20°C to 80°C for versatility. 5、Meet stringent food industry hygiene standards with CRC 3.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 500mm | Piston diameter | 80 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991235 | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 80°C | Cushioning length | 31mm |
| Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
| Moving mass at 0?mm stroke | 717g | Additional moving mass per 10?mm stroke | 38g |
| Basic weight with 0?mm stroke | 5072g | Additional weight per 10?mm stroke | 100g |
| Pneumatic connection | G3/8 | Cover material | High-alloy stainless steel |
| Seals material | NBR TPE-U(PU) | Housing material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 195511 |
Specifications may be subject to change without notice
